Specification of industrial flooring is rarely a simple matter of selecting a product code from a catalog. It acts as a critical structural component where a single calculation error can lead to immediate safety hazards, such as dangerous deflection or permanent yielding. Conversely, over-engineering the specification results in significant procurement waste and unnecessary weight on the substructure. Engineers and facility managers must navigate a complex balance between static loads, dynamic traffic, and strict deflection limits to ensure long-term performance.
The most frequent and costly cause of installation failure is a fundamental misunderstanding of the directionality of the bearing bars. This Span vs. Width error can render a high-strength panel useless, leading to catastrophic collapse under loads it was theoretically designed to support. To prevent these risks, you need a deep understanding of the mechanics behind the metal.
This guide provides a technical framework for evaluating the Steel Grating and Steel Grating structure. We will explore how to interpret manufacturer load tables correctly, calculate requirements for compliance with OSHA and NAAMM standards, and identify the hidden variables that reduce capacity. You will learn to specify grating that meets rigorous safety standards without inflating project costs.
Bearing Bars are the Backbone: The structural integrity of the grating relies entirely on the depth, thickness, and spacing of the bearing bars; cross bars serve only to maintain spacing and lateral stability.
Deflection Limits Decision: Load capacity is often dictated by acceptable deflection (e.g., L/400 for pedestrian comfort) rather than the ultimate yield strength of the steel.
Hidden Strength Reductions: Specification of serrated surfaces (for slip resistance) or specific mesh sizes can reduce effective load capacity by 4%–10%, requiring depth compensation.
Directionality is Non-Negotiable: Span is the dimension parallel to bearing bars; installing grating with the Width across the supports will result in immediate structural failure.

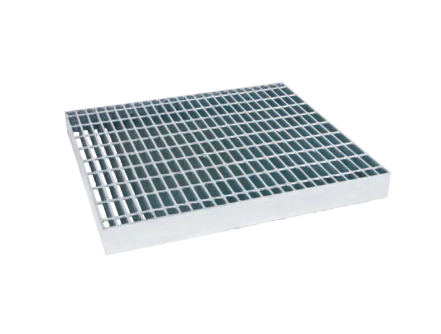

To accurately calculate the Load-bearing capacity of steel grating, you must first dissect how the panel resists force. A grating panel is not a uniform slab; it is a series of parallel beams (bearing bars) held in place by connectors (cross bars). Understanding the distinct role of each component is the first step in avoiding specification failure.
The bearing bars are flat steel strips standing on edge. They function exactly like structural floor joists. Their primary job is to resist the bending moment created by overhead traffic. The strength of these bars does not increase linearly with size; it follows the laws of physics regarding the moment of inertia.
Strength increases with the square of the depth. Consequently, a 2-inch deep bar is significantly stronger than a 1-inch deep bar—it is not merely twice as strong, but exponentially more rigid. This relationship means that small increases in bar depth offer the most efficient way to boost capacity. Standard nomenclature, such as 19-W-4, defines the density of these load carriers. In this example, 19 refers to bearing bars spaced at 1-3/16 inches (19 sixteenths). Reducing this spacing (pitch) to 15/16 inches increases the amount of steel per square foot, thereby increasing the load density the panel can support.
A common misconception is that cross bars contribute to the vertical weight-bearing ability of the panel. In reality, cross bars transfer negligible load. Their function is lateral stability. They prevent the bearing bars from racking or twisting sideways under pressure. They maintain the perpendicular geometry that allows the bearing bars to remain upright and effective.
Construction types influence rigidity but rarely vertical capacity. Welded joints fuse the metal for maximum durability. Press-locked joints rely on hydraulic pressure to force cross bars into slots, creating a cleaner look often used in architectural applications. While press-locked options offer excellent lateral rigidity, the vertical Steel grating strength is still derived almost exclusively from the bearing bars.
The edges of a grating panel require finishing, known as banding. However, not all banding performs a structural function.
Trim Banding: This is essentially aesthetic. It covers open ends to prevent injury and provide a finished look but offers no structural gain.
Load Banding: This is critical for heavy-duty applications. A load band is welded to every bearing bar at the end of the panel. It transfers loads from one bar to adjacent bars, distributing impact and stress.
Decision Point: You must always specify load banding for vehicular traffic or areas with cutouts. Without it, a wheel rolling onto the edge of a panel places all weight on a single unsupported bar end, causing immediate deformation.
Engineers rely on specific metrics to compare products across different manufacturers. Understanding these metrics allows you to verify if a product meets your design criteria.
The Section Modulus (Sx), measured per foot of width, is the primary metric for evaluating Steel grating specifications. It quantifies the geometric strength of the steel section. A higher Sx value correlates directly with reduced deflection and the ability to bridge longer permissible spans. When comparing two different grating types, look at the Section Modulus first. If Type A has a higher Sx than Type B, it will generally perform better under load, assuming the material yield stress is identical.
Load tables typically present data in two distinct columns. Confusing these will lead to dangerous errors.
Uniform Load (U): This is measured in pounds per square foot (lbs/ft²) or kN/m². You use this figure for general flooring, walkways, and platforms where the primary weight comes from pedestrian density or stored materials spread evenly across the surface.
Concentrated/Point Load (C): This is measured in pounds per foot of width. This metric is critical for equipment placement, wheel loads, or specific impact points. If you are placing a heavy machine foot or driving a cart across the grating, the uniform load figure is irrelevant. You must verify the grating can support that specific concentrated weight at its weakest point (usually the center of the span).
Strength is not the only limit. A grating panel might hold a 1,000-pound load without breaking (yielding), but if it sags 1/2 inch in the process, it fails the serviceability criteria. Excessive deflection creates a tripping hazard and a trampoline effect that causes psychological insecurity for workers.
The industry benchmark is the L/400 standard. This rule states that deflection should not exceed the span length divided by 400, or 1/4 inch, whichever is less. This limit ensures pedestrian comfort. When reviewing Load distribution in steel grating, you will often find that the span is limited by deflection (L/400) long before the steel reaches its yield point.
Selecting the correct duty class is essential for longevity. Installing light-duty grating in a vehicle zone is a recipe for rapid failure.
Light-duty grating typically utilizes 1 x 3/16 or 1-1/4 bearing bars. The focus here is strict compliance with OSHA walking-working surface standards. These panels handle foot traffic and light cart loads. They are not designed to withstand the dynamic impact of rolling vehicles or heavy equipment drops.
For areas subject to vehicular traffic, you must refer to AASHTO standards. These designations (H-10, H-15, H-20, H-25) define the axle load capacity required.
| AASHTO Rating | Total Truck Weight (Tons) | Axle Load (lbs) | Wheel Load (lbs) | Typical Application |
|---|---|---|---|---|
| H-10 | 10 | 16,000 | 8,000 | Light Driveways |
| H-15 | 15 | 24,000 | 12,000 | Delivery Access |
| H-20 | 20 | 32,000 | 16,000 | Highways / Heavy Industry |
H-20 Context: An H-20 rating requires the grating to support a 32,000 lb axle load. Standard W series grating usually fails under these conditions. You must specify Steel grating for heavy-duty applications, often denoted as HW (Heavy Weld), which utilizes thicker bars ranging from 1/4 to 3/8.
Forklifts present a unique challenge often exceeding highway truck requirements. You must differentiate between pneumatic tire loads (which are distributed over a larger area) and solid tire loads. Solid tires create highly concentrated point loads that are often more damaging than larger vehicles. When designing for forklifts, calculate the reaction force on the specific footprint of the solid tire rather than just the total vehicle weight.
Several design choices can inadvertently reduce the effective strength of your installation. Being aware of these variables ensures your calculations match reality.
Serrated surfaces are excellent for slip resistance, especially in wet or oily environments. However, there is a penalty. Cutting serrations into the top of the bearing bar effectively removes material depth. Since depth is the primary driver of strength, this removal weakens the bar.
Reduction Formula: Grating strength and durability are typically reduced by the percentage of depth lost to the serration. A practical rule of thumb is to increase the bar depth by one size (e.g., from 1 to 1-1/4) when switching to serrated grating to maintain equivalent load capacity.
The material you choose changes the deflection characteristics:
Carbon Steel vs. Stainless Steel: These materials share a similar modulus of elasticity (stiffness). However, their yield strengths differ. Stainless steel often yields at lower stress levels than high-carbon steel, affecting the ultimate load capacity.
Aluminum: Aluminum is approximately one-third as stiff as steel. To meet the same deflection criteria (L/400), aluminum grating requires significantly deeper bars or shorter spans compared to a steel counterpart.
We must reiterate the single most expensive mistake in the industry: confusing Width with Span.
Span: The direction of the bearing bars. This must run between supports.
Width: The direction of the cross bars.
If you install a panel with the Width dimension spanning the gap, the bearing bars are essentially floating, and the cross bars take the weight. The panel will fail immediately. Always verify support orientation on structural drawings using a checklist before ordering materials.
To ensure Steel grating design considerations are met efficiently, follow this four-step specification workflow.
Analyze the traffic. Is it static, like pallets, or dynamic, like forklifts? Never assume the load is uniform if wheels are involved. Use the Concentrated Load column in manufacturer tables for any application involving wheeled traffic or heavy equipment legs.
Measure the actual gap between the supports, not the center-to-center distance of the beams. This clear span is what the grating must bridge.
Decision Rule: If your measured span falls between two values on a load table, always round up to the next span increment. This builds a safety margin into your selection.
Cross-reference your required Load and your Clear Span to find the appropriate bar size. You must select a size that stays within both the allowable stress limits (preventing permanent bending) and the deflection limits (preventing sagging greater than 1/4 inch).
Consider the operating environment. In corrosive areas, such as chemical plants or coastal facilities, material loss over time is inevitable. Specify thicker bars (e.g., 3/16 instead of 1/8) to provide a corrosion allowance. This ensures that even after years of surface corrosion, enough steel remains to handle the load. Additionally, choose the right finish: Galvanized is the industrial standard for durability, while Painted is generally aesthetic, and Mill Finish offers no protection.
Selecting the correct steel grating is an exercise in balancing load requirements, permissible deflection, and rigid span constraints. It is not merely a purchase; it is a structural design decision. Understanding the mechanics of bearing bars, the impact of serrations, and the critical difference between uniform and concentrated loads empowers you to make safer choices.
Investing in the correct bearing bar depth and proper heavy-duty specification upfront prevents costly retrofits and potential liability issues down the road. The cost of compliance is always lower than the cost of failure.
Before finalizing specifications for H-20 or dynamic load applications, we strongly encourage consulting with a structural engineer or using a manufacturer-verified load table. Ensure your facility is built on a foundation of calculated safety.
A: Span refers to the direction of the bearing bars (the load-carrying flat bars). These must run perpendicular to the supports to bridge the gap. Width refers to the overall dimension measured across the cross bars. Confusing these directions is a critical error; if the width (cross bars) is placed across the span, the grating has no structural strength and will collapse under load.
A: There is no single answer because capacity depends entirely on the clear span and bar depth. For example, a 1 x 3/16 bar at a 2-foot span can hold significantly more weight than the same bar at a 4-foot span. Generally, as the span increases, the allowable load decreases rapidly. Always refer to a specific load table for the exact span and bar size you are using.
A: Yes. Cutting serrations into the bearing bars to create a non-slip surface removes metal from the bar's depth. Since depth determines strength, this reduction weakens the panel. A common rule of thumb is to increase the bearing bar depth by one standard size (e.g., 1 to 1-1/4) to compensate for the material removed by the serrations.
A: The industry standard for pedestrian comfort is L/400, meaning the deflection should not exceed the span length divided by 400. Additionally, most specifications cap the maximum deflection at 1/4 inch, regardless of span. This prevents the grating from feeling bouncy or creating a tripping hazard, even if the steel is strong enough to hold the weight without breaking.
A: Generally, no. Standard W series grating is designed for pedestrian and light static loads. Forklifts exert intense concentrated loads through their solid tires. For forklift traffic, you typically need Heavy Duty HW series grating with thicker bearing bars (1/4 or thicker) and welded load banding to distribute the wheel pressure effectively.
