Selecting steel grating is often treated as a minor detail in industrial design, yet it serves as the literal foundation of workplace safety. A failure here does not just result in replacement costs; it can lead to catastrophic structural collapses, compliance violations, and severe personnel injury. While a standard metal grid appears simple to the untrained eye, the technical interplay between bearing bar height, span direction, and zinc coating thickness dictates its actual performance in the field. Procurement decisions made without understanding these variables often result in floors that deflect uncomfortably underfoot or corrode years before their expected lifespan ends.
The hidden complexity of grating specifications requires a shift in how buyers evaluate quotes. It is not enough to simply ask for a standard panel size. You must verify that the geometry matches your specific load profile and that the galvanization meets rigorous international standards. This guide moves beyond basic definitions to provide actionable procurement criteria. We will cover how to decode manufacturer spec sheets, calculate real-world load requirements, and audit galvanization quality to ensure your facility is built on a secure, long-lasting platform.
Span Direction is Critical: The most common and dangerous installation error is orienting bearing bars parallel to supports rather than perpendicular.
Thickness ≠ Strength: A deeper bearing bar (height) contributes more to load capacity than a thicker bar; optimize geometry before adding mass.
Galvanization Benchmarks: For industrial longevity (30+ years), verify coating thickness averages ≥80-85μm (microns) for heavy-duty panels, not just a shiny finish.
Load Type Matters: Distinguish between distributed pedestrian loads and concentrated vehicular wheel loads—the latter requires heavy-duty banding.
To the uninitiated, all metal grates look similar. However, the structural integrity of your walkway or platform relies on specific components that act as the Technical DNA of the product. Understanding the Specifications of steel grating is the first step in separating high-quality industrial flooring from materials that are unfit for purpose.
A grating panel consists of two primary elements: the bearing bars and the cross rods. It is vital to understand that they do not share the workload equally.
Bearing Bars (The Muscle): These parallel flat bars carry 99% of the structural load. Their geometry determines the panel's strength. Key variables include the height (typically ranging from 20mm to 100mm) and the thickness (3mm to 10mm). A taller bar significantly increases stiffness and load capacity compared to a merely thicker bar.
Cross Rods (The Skeleton): These twisted square rods run perpendicular to the bearing bars. While they provide lateral stability and keep the bearing bars fixed in alignment, they are not load-bearing components. Standard spacing for cross rods is usually 50mm or 100mm.
Industry codes can look like cryptic ciphers, but they follow a logical formula. A standard designation might read 19-W-4 (imperial) or G325/30/100 (metric). Unpacking these codes reveals the exact geometry of the product.
| Component | Example Value (Metric) | Explanation |
|---|---|---|
| Bearing Bar Size | G325 | Indicates a bar 32mm high and 5mm thick. |
| Bearing Bar Spacing | 30 | Distance (center-to-center) between bearing bars is 30mm. |
| Cross Rod Spacing | 100 | Distance (center-to-center) between cross rods is 100mm. |
The universal formula is essentially: Bearing Bar Size / Bearing Bar Center Spacing / Cross Rod Center Spacing. Misreading the first number—confusing height for thickness—can result in ordering a product with a fraction of the required strength.
Selecting the base metal sets the baseline for cost and durability. Carbon steel (grades like Q235 or ASTM A36) remains the standard for industrial floors due to its high strength-to-cost ratio. It provides the necessary rigidity for heavy equipment but requires protection against rust.
You must also decide between surface types. Plain surfaces are standard for general walkways, but serrated surfaces are crucial for safety in specific environments. If the area will be exposed to fluids, oil, or has a slope greater than 5°, specify serrated bars. Note that the serration process cuts into the metal, slightly reducing the effective depth of the bearing bar, which should be factored into strength calculations.
Once you understand the physical build of the product, the next step is determining if it can handle the weight. Load ratings of steel grating are not suggestions; they are hard limits defined by physics. Ignoring them invites structural failure.
Engineers generally look at two distinct types of pressure when specifying Steel grating for industrial floors:
Uniform Distributed Load (UDL): This measures weight spread evenly across the surface, such as a crowd of people or palletized storage. Standard benchmarks, like EN 1433 Class P, define safe limits for pedestrian traffic.
Concentrated Line/Point Load: This is the critical metric for dynamic environments. If a forklift, pallet jack, or heavy equipment wheel rests on the floor, the load is concentrated on a tiny surface area. Standard pedestrian grating may buckle under these point loads even if it handles high UDL values.
The span is the open distance between two supports. In the world of grating, span is the single most critical dimension. Manufacturers differentiate between Clear Span (the gap) and Overall Length.
The Safety Warning: Load capacity drops drastically as the span increases. A panel that is perfectly safe at a 1-meter span may fail catastrophically at 1.5 meters. A measurement error of just 5mm in the span direction can reduce the safety factor significantly. If your span measurement is on the borderline of a load table’s limit, always jump to the next bearing bar size (height) for safety.
Strength is not just about whether the floor breaks; it is about how much it bends. Deflection limits, often cited as the 1/200 rule (span divided by 200) or 1/4 inch, ensure rigidity.
Why does deflection matter if the steel doesn't break? Worker confidence. A floor that bounces or sags underfoot creates a psychological hazard known as the bouncy floor feeling. This reduces productivity and can lead to tripping hazards if the deflection creates a lip between panels.
For areas expecting vehicular traffic, standard banding (the trim welded to the ends of the panel) is insufficient. Forklifts exert massive horizontal forces when braking or turning. These applications require heavy-duty Load Banding. This involves welding a substantial flat bar to the panel ends, which helps transfer impact stress across the grid rather than allowing the ends of the bearing bars to twist or collapse.

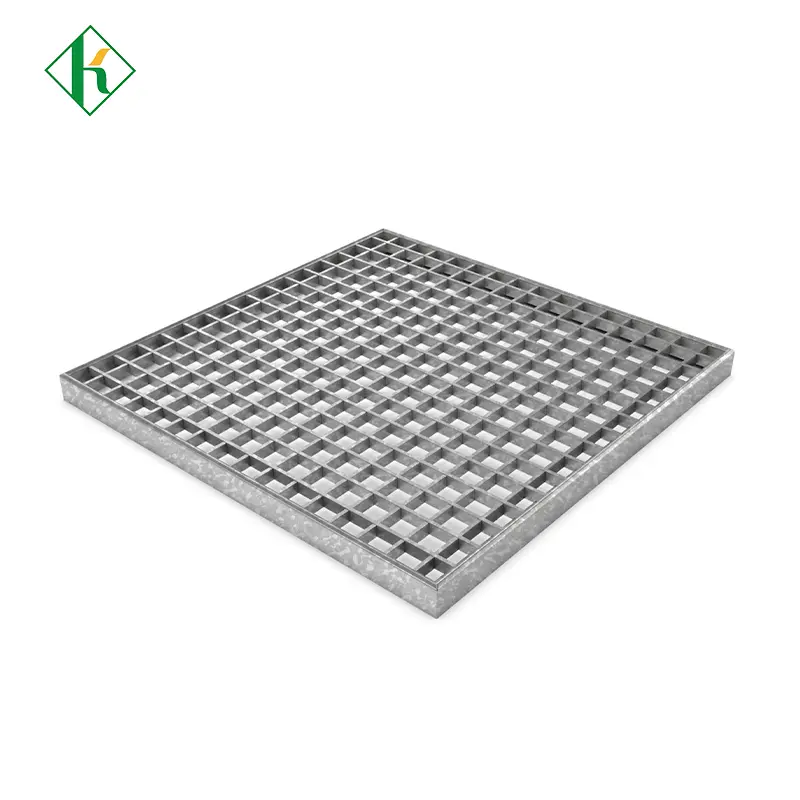

Structural integrity means nothing if the floor rusts away in three years. For industrial environments, Hot Dip Galvanized Steel Grating is the superior choice for corrosion protection, but not all galvanization is created equal. You must audit the Coating thickness of galvanized grating to ensure you are getting what you paid for.
It is critical to distinguish between hot-dip galvanization and electro-plating (often called cold galvanizing). Electro-plating deposits a thin layer of zinc that provides a bright, aesthetic finish but offers minimal corrosion resistance. Hot-dip galvanization involves submerging the steel in molten zinc, creating a metallurgical bond.
This process creates a self-healing mechanism. If the steel is scratched, the surrounding zinc sacrifices itself to protect the base metal, preventing rust from creeping underneath the coating. Electro-plated gratings lack this robust protection and should generally be avoided for industrial flooring.
Do not rely on visual assurances. Reliable suppliers adhere to global standards such as ASTM A123, ISO 1461, or GB/T 13912. These standards dictate precise coating thicknesses based on the thickness of the steel bar.
Actionable Thickness Data:
Steel Thickness ≥ 6mm: You should expect an average coating of 85μm (microns).
Steel Thickness 3mm–6mm: You should expect an average coating of 70μm (microns).
Pro Tip: Be skeptical of quotes that do not specify micron counts. A supplier offering a lower price might be saving money by reducing the zinc dip time, resulting in a coating that looks fine on day one but fails in year five.
Many buyers mistakenly believe that a bright, shiny finish indicates high quality. In reality, brightness is deceptive. Fresh zinc is shiny, but durable zinc naturally weathers to a matte gray patina. This patina is stable and protective.
When inspecting a delivery, look for actual defects rather than dullness. Reject panels with uncoated spots (black spots), peeling, or excessive dross (rough, sharp spikes of zinc) which can pose a cutting hazard to workers. A magnetic thickness gauge is a cheap investment that allows you to spot-check the micron count on delivery.
The method used to assemble the bars affects the panel's rigidity and long-term durability. When defining Grating performance specifications, you will typically choose between three manufacturing processes.
Electro-Forged (Welded): This is the industrial standard. High voltage and hydraulic pressure fuse the cross rods and bearing bars together effectively into one piece of metal. It offers maximum rigidity and is the best choice for power plants, refineries, and general walking surfaces.
Press-Locked: In this process, cross rods are hydraulically pressed into slots on the bearing bars. This creates a cleaner, smoother look often used in architectural or commercial applications where aesthetics matter more than raw industrial utility.
Riveted: This is an older, more expensive style where reticulated bars are riveted to bearing bars. However, it is superior for areas with high vibration or impact fatigue, such as bridge decking, because the rivets allow for minute flexibility without cracking welds.
How you fasten the grating to the support beams is as important as the grating itself.
Welding: This provides a permanent, highly secure connection. It is the preferred method for heavy-duty areas. Requirement: Welding destroys the local zinc coating. You must touch up all welds with zinc-rich paint immediately to prevent rust bleed.
Saddle Clips/Clamps: These allow for easy removal during maintenance. However, they introduce a risk. Vibrations from machinery can loosen clips over time, causing panels to slide. In high-vibration zones, we recommend using double-clipping methods or locking nuts to ensure the floor stays put.
Errors in ordering usually happen because a critical dimension was assumed rather than specified. Use this checklist when Choosing the right steel grating to ensure your supplier quotes exactly what you need.
Application: Define the use case. Is it a walkway, a heavy traffic lane, or a drainage cover?
Material: Choose your base. Carbon steel is standard; Aluminum is lightweight; Stainless Steel is for corrosive chemical/food environments.
Surface: Specify Serrated for oily/wet areas or Smooth for general use.
Mesh Size: Standard industrial mesh is 30mm spacing. However, if the area requires ADA compliance or protection against high heels falling through, specify Close Mesh.
Bar Size: This must be derived strictly from your load requirements and the clear span distance.
Span Direction: This is the most critical dimension. Clearly mark which dimension is the Span (direction of bearing bars) and which is the Width (cross rods).
Finally, vet the partner supplying the metal. Ask if they offer a mill certificate that matches the heat number of the steel delivered. Furthermore, ask if they can provide a load table specifically for the geometry you are requesting. A supplier who cannot produce technical load data is likely acting as a middleman without technical expertise.
The cheapest grating often carries the highest Total Cost of Ownership. Saving a small percentage on the initial purchase price is rarely worth the risk of premature rust or the need for safety retrofits when a floor begins to sag. By paying attention to the details, you ensure a safe facility for decades.
As you finalize your procurement, prioritize the Span Direction and Zinc Thickness (Microns) above all other metrics. These two factors are the primary points of failure in industrial flooring. We encourage you to audit your current design specs against the load tables provided by your structural engineers before issuing a Purchase Order. A comprehensive review today prevents a structural crisis tomorrow.
A: For standard industrial durability, you should look for a coating thickness of 70-85 microns. Specifically, steel bars 6mm or thicker require an average of 85 microns, while bars between 3mm and 6mm require 70 microns, per standards like ASTM A123 and ISO 1461.
A: Yes, you can cut panels to fit onsite. However, cutting exposes the raw carbon steel core. You must seal these exposed ends immediately with zinc-rich paint or a cold galvanizing spray to prevent corrosion from starting at the cut point and creeping under the surrounding zinc.
A: Bearing bars are the tall, flat bars that carry the load and must run between supports (the span). Cross rods are the twisted or round bars that run perpendicular to the bearing bars; they hold the bars together for stability but do not carry weight.
A: This is a normal chemical process. While fresh hot-dip galvanization looks shiny and silver, it reacts with the atmosphere to form a zinc patina. This matte gray finish is actually a harder, more stable protective barrier than the initial shiny surface.
A: Span is always the dimension parallel to the bearing bars. It is critical to measure this correctly regardless of the panel's overall shape. Even if the bearing bar length is the shorter dimension of the panel, that dimension is still the span.
