Walkway grating is rarely top of mind until it fails. In industrial environments, this structural component is not merely a commodity flooring product; it is a critical safety asset. A failure in specification does not just result in a bent metal bar. It leads to liability claims, severe worker injury, and costly operational downtime. Unfortunately, many procurement teams and facility managers treat grating selection as a simple volume purchase, focusing on price per square foot rather than structural integrity.

The most common error lies in relying on total weight capacity without accounting for how that load is applied. A walkway designed to hold a static crowd may buckle instantly under the wheel of a pallet jack. This misalignment between specification and real-world usage creates hidden hazards in factories, refineries, and power plants globally. This guide provides a technical framework for evaluating specifications against safety standards, ensuring your infrastructure meets the rigorous demands of industrial operations.

Key Takeaways

  • Distinguish Load Types: Why a Uniform Load rating is insufficient for walkways subjected to forklifts or heavy equipment (Concentrated Load matters more).

  • Deflection vs. Yield: Understanding that a safe walkway isn't just one that doesn't break—it’s one that doesn't bend beyond L/200 (or 1/4 inch).

  • The Serrated Trade-off: How specifying anti-slip serrated surfaces reduces load-bearing capacity by 4%–10% depending on bar depth.

  • Compliance Triggers: When to upgrade from standard mesh to Ball Proof specifications (20mm vs. 35mm) based on underlying traffic.

Defining Load Types: Why Total Capacity Is Misleading

When reviewing manufacturer data sheets, you will often see impressive load figures listed in the thousands of pounds. However, these numbers are dangerous if taken out of context. To select the correct Walkway Grating, you must move beyond basic weight assumptions and adopt engineering-grade evaluation criteria. The geometry of the load determines whether the steel yields or holds.

Uniformly Distributed Load (U/Fv)

Uniformly distributed load, often denoted as U or Fv in technical tables, assumes the weight is spread equally across every square inch of the grating surface. This is measured in pounds per square foot (lbs/ft²) or kilonewtons per square meter (kN/m²).

This metric is relevant for pedestrian platforms where the primary stress comes from a crowd of people, or for storage mezzanines holding stacked boxes. However, uniform load ratings often overestimate safety for dynamic industrial environments. A grating rated for 100 lbs/ft² might technically support 2,000 lbs over a 20-square-foot area, but that does not mean it can support a 2,000 lb machine placed in the center.

Concentrated Load (C/Fp)

Concentrated load, or point load, is the critical metric for most industrial applications. It measures weight applied to a specific point or small contact patch, such as a boot heel, a tool chest leg, or a forklift tire. It is typically measured in pounds (lbs) or kilonewtons (kN).

This distinction is vital for safety. Consider a scenario where a maintenance walkway is rated for a high uniform load. If a worker drives a pallet jack carrying a heavy motor across that walkway, the entire weight of that load is transferred through two small wheels. This creates a massive stress concentration on just one or two bearing bars. If the specification was based solely on uniform capacity, the bearing bars may permanently deform or fail under this localized pressure.

Traffic-Based Categorization

To simplify selection, engineers categorize grating based on the type of traffic it must support. You should align your selection with these standard tiers:

  • Pedestrian Grade: Designed primarily for human foot traffic. These specifications typically handle less than 100 lbs/ft² uniform load. They are suitable for catwalks, observation platforms, and emergency egress routes where no equipment will roll.

  • Light Vehicle (H-10/H-15): This category supports hand trucks, pallet jacks, and small forklifts. Here, the Section Modulus—a geometric property representing resistance to bending—becomes the defining check. You must verify the grating can handle the specific axle load of the vehicle.

  • Heavy Duty (H-20): This is the standard for truck-bearing capacity, similar to highway bridge standards. For H-20 applications, the limiting factor is often not just the bearing bar strength, but the side rail strength. The grating must resist the lateral forces and impact loads generated by moving heavy machinery.

Interpreting Deflection Limits: The Hidden Safety Metric

A common misconception in structural safety is equating strength with ultimate failure. In reality, a walkway can be structurally sound enough to not collapse, yet still be unsafe for use. This is where deflection comes into play. Deflection refers to how much the grating bends or bows under a load.

Understanding Deflection

If a walkway sags significantly when a worker steps on it, it creates a trampoline effect. Even if the steel does not break, this flexibility causes two major issues. First, it creates a trip hazard, especially where the loaded panel meets a rigid support beam. Second, it induces psychological discomfort and vertigo for workers operating at heights. A bouncy floor feels unsafe, reducing worker confidence and efficiency.

The industry standard for acceptable deflection is the L/200 rule. This rule states that the deflection should not exceed the span length divided by 200. Furthermore, most safety standards place a hard cap on deflection at 1/4 inch (6mm) regardless of the span. This ensures that the surface remains rigid enough to prevent equipment instability.

Reading the Load Tables

Manufacturer load tables can be tricky to interpret without training. They typically list the maximum load the grating can handle before reaching two different limits: the yield point (permanent damage) and the deflection limit (acceptable bending).

You must identify which limit determines the listed value. Responsible manufacturers will mark certain values with asterisks or shading. This usually indicates that while the grating will not physically break at that weight, it will exceed the recommended 1/4 inch deflection. Buying based on asterisked values results in a safe-but-bouncy floor that may violate OSHA recommendations for working surfaces.

Span vs. Depth Relationship

The relationship between the span (distance between supports) and the load capacity is not linear. It follows an inverse square law. If you double the span of a grating panel, its deflection increases by a factor of eight, and its load capacity drops significantly.

This physics principle offers actionable advice for cost-effective design. If you are struggling to meet load requirements, reducing the support span is effective but expensive due to the extra steel beams required. Often, increasing the bearing bar depth is the smarter move. Increasing bar depth from 1 inch to 1.25 inches drastically increases stiffness (moment of inertia) with only a marginal increase in material cost.

Feature Impact on Capacity Recommendation
Short Span Increases capacity exponentially Ideal for heavy loads, but increases support structure costs.
Long Span Increases deflection risk Requires deeper bearing bars to maintain rigidity.
Deeper Bars Increases stiffness (Section Modulus) Most cost-effective way to fix deflection issues.

Material and Surface Impact on Structural Integrity

Safety features often come with structural trade-offs. When specifying materials for industrial environments, you must balance the need for slip resistance and corrosion protection against the raw strength of the panel.

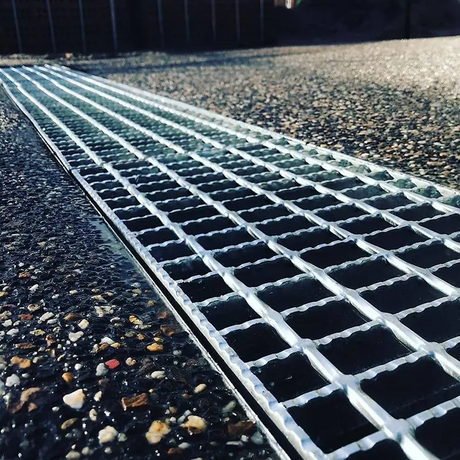

Serrated vs. Smooth Surface

Smooth bearing bars offer the maximum possible steel cross-section for a given depth. However, environments prone to oil, water, or grease require anti-slip surfaces to meet OSHA requirements. The solution is usually serrated grating, where notches are cut into the top of the bearing bars.

You must calculate for the serrated trade-off. Cutting these notches effectively reduces the depth of the bearing bar. For example, a 1-inch bar might only have 0.75 inches of solid steel remaining below the serrations. This reduces the load-bearing capacity by roughly 4% to 10%, depending on the total bar depth. Deeper bars lose a smaller percentage of their total strength, but for shallow grating, this loss is significant and must be factored into your safety margins.

Material Selection Matrix

Selecting the right material prevents long-term structural degradation. A Steel Grating panel that meets load requirements on day one may fail three years later if rust eats away its effective thickness.

  • Carbon Steel: This is the default for internal industrial walkways. It offers the highest strength-to-cost ratio. It is rigid, durable, and handles heavy vehicular loads well. However, it requires painting or coating if used in humid areas.

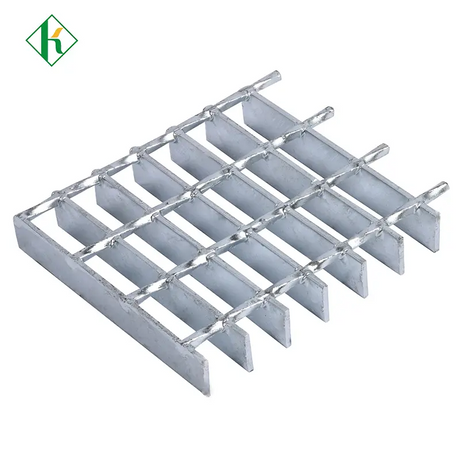

  • Galvanized Steel: For outdoor use or chemical environments, hot-dip galvanizing is essential. The zinc coating prevents rust-induced structural degradation. While slightly more expensive than plain carbon steel, it avoids the rapid loss of load capacity that occurs when steel corrodes and thins.

  • Aluminum: Aluminum offers a high strength-to-weight ratio. It is ideal for roof walkways or suspended platforms where the dead load of the walkway itself is a concern for the building structure. However, aluminum has a lower modulus of elasticity than steel, meaning it deflects (bends) more under the same load.

  • Fiberglass (FRP): FRP is non-conductive and chemically resistant, making it perfect for electrical substations or corrosive acid plants. However, it has strict load limitations compared to steel and can become brittle in extreme UV exposure over time.

Compliance and Mesh Size: Ball Proof and Fall Protection

While load capacity prevents the floor from collapsing, mesh size prevents objects from falling through it. Dropped objects are a leading cause of injury in industrial facilities, especially on elevated platforms where tools or hardware can reach terminal velocity before striking personnel below.

The Ball Proof Standard

Global safety norms, heavily influenced by British Standard BS 4592 and ISO 14122, use Ball Proof testing to rate mesh tightness. This test defines safety based on the size of a sphere that can pass through the grating openings.

The 35mm Compliance standard ensures that a 35mm sphere cannot pass through. This is the standard specification for general walkways where traffic below is occasional. It prevents large tools and feet from slipping through. However, for walkways located directly above machinery or busy workstations, 20mm Compliance is often required. This stricter mesh prevents smaller bolts, nuts, and hand tools from falling, drastically reducing risk to assets and people below.

Implications for Load

Moving to a tighter mesh (for example, switching from a 19-W-4 spacing to a 15-W-4 spacing) places more steel bars per foot of width. This naturally increases the steel weight per square foot and boosts the load capacity. While this increases the material cost, it provides a dual benefit: higher structural safety factors and enhanced fall protection.

Integrated Kick Plates (Toe Boards)

OSHA strictly mandates toe boards for elevated platforms to prevent objects from being kicked off the edge. While toe plates can be bolted on in the field, specifying grating with welded, integrated toe boards is often more efficient. Integrated plates strengthen the panel edge, acting like a stiffening rib, and significantly reduce installation labor compared to retrofitting toe plates on site.

The Decision Checklist: Selecting the Right Walkway Grating

To ensure you are purchasing the correct product, consolidate the technical data into a logical procurement process. Do not guess; follow this step-by-step checklist.

  1. Define the Worst-Case Load: Never design for the average day. Design for the heaviest possible concentrated load. Ask: Will a forklift ever cross this? Will a heavy motor be set down here for maintenance? Use the rear wheel weight of a loaded forklift as your benchmark if vehicles are present.

  2. Determine the Span: Measure the clear distance between your structural supports accurately. Remember that small increases in span dramatically increase deflection.

  3. Select Bar Depth & Thickness: Consult load tables to find the bar size that meets the deflection limit for your span. If the table shows the bar holds the weight but exceeds 1/4 inch deflection, move to the next size up.

  4. Verify Environment: Analyze the operating conditions. If the area is oily or wet, choose serrated surfaces and add a safety margin for the strength loss. If the area is corrosive, specify galvanized steel or FRP.

  5. Check Fall-Through Risks: Look at what is below the walkway. If people work underneath, specify a 20mm ball-proof mesh. If it is an open pit, standard 35mm mesh is likely sufficient.

  6. Installation Method: Confirm how the grating will be anchored. Ensure side rails or localized clips are rated to handle the stress forces at the anchor points, preventing the panels from sliding or lifting under dynamic loads.

Conclusion

Selecting the right grating is a balance of physics and economics. Load capacity is not a static number printed on a brochure; it is a dynamic function of span, bar depth, and material properties. By shifting your focus from total capacity to concentrated load and deflection limits, you ensure the long-term usability of your facility.

Prioritizing deflection limits does more than keep the metal from bending; it ensures worker confidence and eliminates trip hazards. A rigid floor is a safe floor. Before finalizing any purchase, consult with structural engineers to validate manufacturer load tables against your specific site blueprints. This extra step validates that your walkway grating will perform as a true safety asset, protecting your people and your operations for decades.

FAQ

Q: What is the difference between H-20 and pedestrian load ratings for grating?

A: Pedestrian ratings generally support uniform loads up to 100 lbs/ft², suitable for foot traffic. H-20 ratings are heavy-duty standards designed to support truck axles (similar to highway bridges). H-20 grating requires significantly thicker bearing bars and stronger cross-rod connections to withstand the concentrated wheel loads and impact forces of heavy vehicles.

Q: How much load capacity do I lose by choosing serrated steel grating?

A: You typically lose between 4% and 10% of the load-bearing capacity. The serration process cuts notches into the bearing bar, reducing its effective depth. Deeper bars (e.g., 2 inches) lose a smaller percentage of strength compared to shallow bars (e.g., 1 inch), but the reduction must always be calculated in your safety margins.

Q: What is the maximum safe span for 1-inch steel walkway grating?

A: It depends on the load, but for standard pedestrian loading (100 lbs/ft²), a 1-inch deep bar typically has a maximum safe span of around 4 to 5 feet before deflection becomes unacceptable. For heavy concentrated loads, the safe span for a 1-inch bar is significantly shorter, often less than 3 feet.

Q: Does OSHA require specific mesh sizes for elevated walkways?

A: OSHA does not mandate a specific mesh size number but requires that floor openings do not allow the passage of objects that could injure employees below. Standard practice to meet this performance requirement is using Ball Proof standards, such as ensuring a 35mm sphere cannot pass for general areas, or smaller meshes for high-risk zones.

Q: How do I calculate the deflection limit for my walkway span?

A: The industry standard limit is L/200. Take your span length (in inches) and divide it by 200. For example, a 60-inch span has a deflection limit of 0.3 inches. However, most standards also apply a hard cap of 1/4 inch (0.25 inches). Whichever number is smaller is your maximum allowable deflection.
