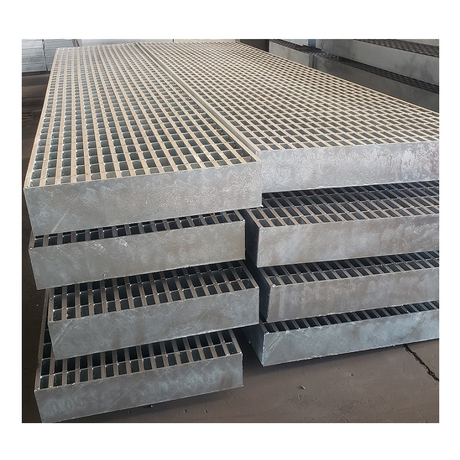

Ordering Steel Grating without precise load specifications risks immediate structural failure. You could easily face devastating workplace injuries. Alternatively, you might completely waste budget on over-engineered materials. You might specify elevated flooring for a massive manufacturing plant. Or you may source a reliable trench cover for heavy vehicular traffic. Regardless of the project scope, procurement and engineering teams must align on exact environmental demands before ever requesting a quote.
Guessing load capacities almost always leads to disastrous operational downtimes or failed safety inspections. This comprehensive guide breaks down the critical load parameters and dimensional data you need. We also detail the specific daily traffic requirements you must evaluate beforehand. You will learn how to accurately specify your grating dimensions today. Ultimately, we help you secure a compliant, safe, and highly cost-effective order.
Always specify whether your application requires Uniform Load (psf) or Concentrated Load (lbs) capacities.
Clear span (the distance between structural supports) is the most critical metric in determining bearing bar size and thickness.
Application traffic—ranging from pedestrian to heavy forklift—dictates whether standard or heavy duty steel grating is required.
Understanding deflection limits ensures safety compliance and user comfort (e.g., strict 1/4" deflection limits for pedestrian traffic).
Failing to provide exact load details triggers two terrible outcomes. First, you might under-specify your materials. This mistake creates massive liability. It actively invites catastrophic structural failure. Second, you might over-specify the system. Over-engineering wastes your procurement budget needlessly. You spend money where you do not need extra strength. You must strike a perfect balance.
You must adhere to strict industry guidelines. The NAAMM (National Association of Architectural Metal Manufacturers) standards govern Metal Bar Grating (MBG). Following these standards guarantees baseline safety. They outline exact structural requirements for every application. Ignoring them opens you up to severe safety audits. It also exposes workers to daily risk. Compliance ensures you protect human lives.
Reputable manufacturers operate strictly by these rules. They will refuse to quote a job without clear data. They need your exact load requirements. They also require your exact span measurements. This data serves as a mandatory baseline. It ensures total quality assurance. It also provides necessary liability protection. Good vendors protect you from bad specifications. When a vendor asks for more data, they protect your project. Supplying proper industrial steel grating demands extreme precision.
You must classify how weight interacts across the surface. Engineers break this down into three primary categories. Knowing the difference ensures proper bearing bar selection. Incorrect assumptions here ruin the entire installation.
Definition: Weight distributes evenly across the entire surface area. We measure it in pounds per square foot (psf).
Use Case: Standard walkways require uniform load ratings. Platforms and catwalks also rely on these metrics. Pedestrians typically exert uniform loads as they walk across wide areas.
Definition: Weight applies to a specific, localized area. We measure this in pounds (lbs). It typically occurs right at mid-span.
Use Case: Equipment mounting points generate concentrated loads. Rolling carts act as localized pressure points. Specific foot-traffic pinch points also require this calculation. Heavy machinery bases rest on very small footprints.
You must evaluate how the load behaves over time. Stationary machinery represents a static load. It simply sits on the grating. It does not bounce or vibrate. Conversely, moving vehicles represent dynamic loads. Vibrating heavy equipment also acts dynamically.
Dynamic loads require mathematical impact factors. You must add these multipliers to your base load calculation. They account for the extra force generated by movement. A forklift braking hard exerts massive dynamic force. You cannot rely on static ratings for moving machinery. A common mistake involves ignoring the 20 percent impact factor for light rolling traffic. Always pad your numbers for dynamic movement.
Table: Comparison of Load Types for Grating Specification
| Load Category | Measurement Unit | Force Distribution | Typical Application |
|---|---|---|---|
| Uniform Load (U) | Pounds per square foot (psf) | Spread evenly across the whole panel | Catwalks, pedestrian bridges |
| Concentrated Load (C) | Pounds (lbs) | Focused on a small footprint | Equipment legs, rolling cart wheels |
| Dynamic Load | Base load + Impact Factor (%) | Shifting, vibrating, braking forces | Vehicular traffic, heavy stamping machines |
Application traffic completely dictates your required grating type. You must match the floor to its daily abuse. Overestimating saves money. Underestimating costs lives.
Standard walkways require a minimum of 50 to 100 psf uniform load. You must focus heavily on maximum bar spacing here. Tight spacing prevents high-heeled shoe hazards. It also stops dropped tools from falling through the floor. You often need to meet strict ADA compliance standards. ADA grating ensures wheelchairs pass over safely. It requires a maximum 1/2 inch opening between bars.
Moving pallet jacks requires significantly thicker bearing bars. Jack wheels are small and hard. They create intense pinpoint pressure. You must account for the empty weight of the jack. Then, you must add the maximum expected payload. This combined number equals your required concentrated load. Polyurethane wheels still crush weak metal bars. Never assume a pallet jack is a light load.
Heavy machinery destroys standard flooring quickly. This traffic demands highly specific wheel load data. You might refer to AASHTO H-20 or HS-20 standards. These standards govern 16,000 lbs to 32,000 lbs axle loads. Standard industrial options will warp instantly under solid forklift tires.
Therefore, heavy duty steel grating becomes entirely mandatory. Heavy-duty welded or press-locked grating survives this brutal environment. The bearing bars are much thicker. The cross bars are vastly stronger. Never put a forklift on standard pedestrian grating. It will collapse.
Load capacity relies entirely on your physical dimensions. You must measure the structural framework accurately. A fraction of an inch changes the entire capacity profile.
Clear span represents the unsupported distance beneath the grating. It is the empty gap between the edges of your structural steel supports. It is not the overall length of the grating panel itself. This difference is absolutely critical.
As clear span increases, load-bearing capacity decreases exponentially. You must increase bearing bar depth to compensate. A longer span requires much taller steel bars. A 4-foot span holds drastically less weight than a 2-foot span using the exact same material. Always measure the empty space precisely.
Bearing bars must always span perpendicularly across the open supports. They carry the actual weight. Cross bars merely keep the bearing bars upright. Incorrectly specifying the span direction is incredibly dangerous.
It remains the number one cause of catastrophic grating failure. The entire panel will buckle immediately. You must clearly mark the span direction on all drawings. Manufacturer drawings will highlight this detail. Review it carefully before approving production.
Trenches require specific dimensional care. When ordering, you must specify the exact internal trench width. You must also measure the lip or ledge width. The grating rests on these ledges. Typically, you need at least one inch of resting surface on each side.
Missing these measurements ruins the installation. Using proper trench cover steel grating ensures proper drainage. It also guarantees a flush, safe driving surface. Measure twice before ordering custom covers.
Deflection determines how much the metal bends under pressure. You must establish strict limits for user safety. Too much bend causes panic. It also ruins the material.
Deflection is the maximum amount the grating will sag under its design load. All steel bends slightly when you apply weight. Controlling this bend prevents permanent damage. It also prevents workers from feeling unsafe. A rigid floor builds worker confidence.
Industry standards dictate strict deflection limits. For pedestrian areas, deflection should not exceed 1/4 inch (6.35 mm). We measure this under a 100 psf uniform load. Keeping the sag under 1/4 inch ensures workers feel secure. They will not experience a bouncing trampoline effect while walking. Excessive bouncing slows down production and causes fatigue.
Vehicular traffic uses a different calculation. Deflection is often limited to a strict ratio of L/400. You divide the total Span (L) by 400. For example, a 48-inch span allows only 0.12 inches of deflection.
This strict limit prevents permanent deformation. It stops the steel from yielding. Once steel yields, it never returns to its original shape. You must stay below this critical threshold to maintain structural integrity.
You must gather specific data before requesting a purchase order. Use this concise checklist to lock in your variables. Do not guess any of these numbers.
Clear Span dimension and orientation: Note the exact unsupported distance. Explicitly define which way the bearing bars must run.
Maximum expected loads: Detail the Uniform Load (psf). Also document the absolute highest Concentrated Load (lbs) expected at mid-span.
Traffic type: Specify if the area sees pedestrian boots, pneumatic tires, or solid forklift tires. Be highly specific about the tire material.
Environmental factors: Corrosive environments dictate material choice. You must choose between galvanized steel, bare steel, or stainless alloys based on chemical exposure.
Required panel dimensions: Provide Width x Length formatting. Calculate the total square footage required for the entire job site.
Edge banding requirements: Decide between open ends or banded ends. High-traffic vehicular zones almost always require heavy banding for extra durability.
Providing this exact list accelerates your quoting process. It completely eliminates back-and-forth emails. It guarantees you receive the exact product you need on time.
Accurate load specifications remain completely non-negotiable. They guarantee the safety and longevity of your industrial flooring. They also ensure your drainage systems perform perfectly over time. Precision at the engineering stage drives actual cost-efficiency.
You must verify your clear span data immediately. Confirm daily traffic expectations directly with your site engineers. Do not rely on old blueprints. Next, consult official manufacturer load tables. You can also reach out to a technical sales representative. They will finalize your required bearing bar size. They will also confirm your optimal bar spacing. Take action today to secure a safe, durable installation.
A: Overall span includes the resting ledge on both sides. Clear span measures only the empty space beneath the grating. Clear span is the actual unsupported distance. Engineers use clear span exclusively to determine real load capacity. You must provide clear span to your vendor.
A: No. Forklifts exert massive concentrated rolling loads. They often use solid tires that create intense pinpoint pressure. Standard grating will quickly warp or collapse. You explicitly require heavy duty steel grating for any forklift application.
A: Identify the absolute heaviest wheel load crossing the trench. Calculate the exact tire contact area. Then, add a 20 to 30 percent impact factor. This extra multiplier accounts for dynamic movement, hard braking forces, and sudden acceleration.
A: The grating will possess zero structural integrity. Bearing bars must cross the empty span. If cross bars run across the span instead, the panel collapses immediately under pressure. Cross bars do not bear weight. They only stabilize the bearing bars.
