Installing fiberglass grating properly is crucial for ensuring the safety, durability, and long-term performance of this widely used industrial flooring solution. Whether it’s for a chemical plant, marine platform, wastewater treatment facility, or architectural design, fiberglass grating offers significant advantages—lightweight, corrosion-resistant, and non-conductive. But these benefits can only be fully realized with a meticulous and technically sound installation process.

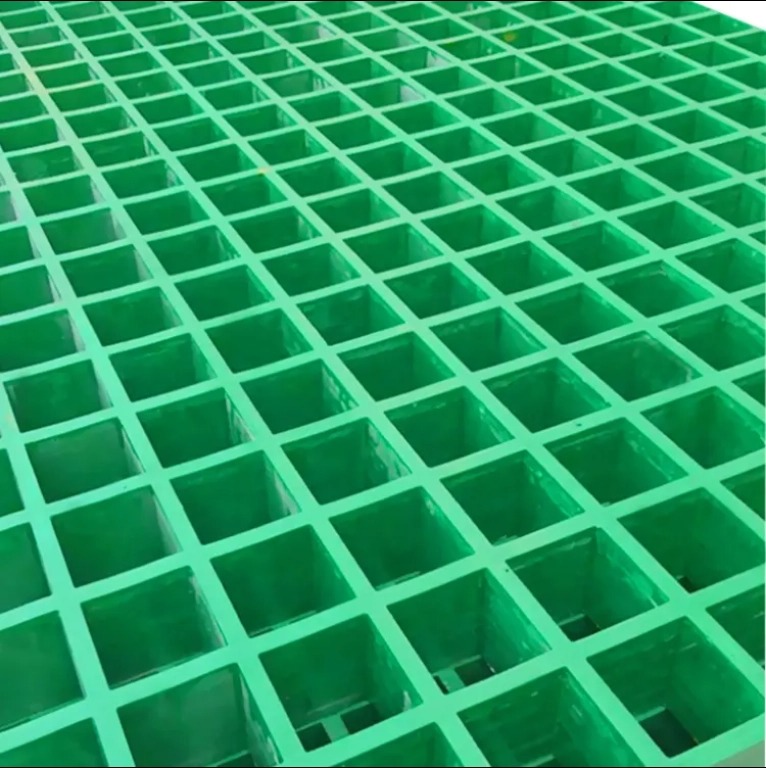

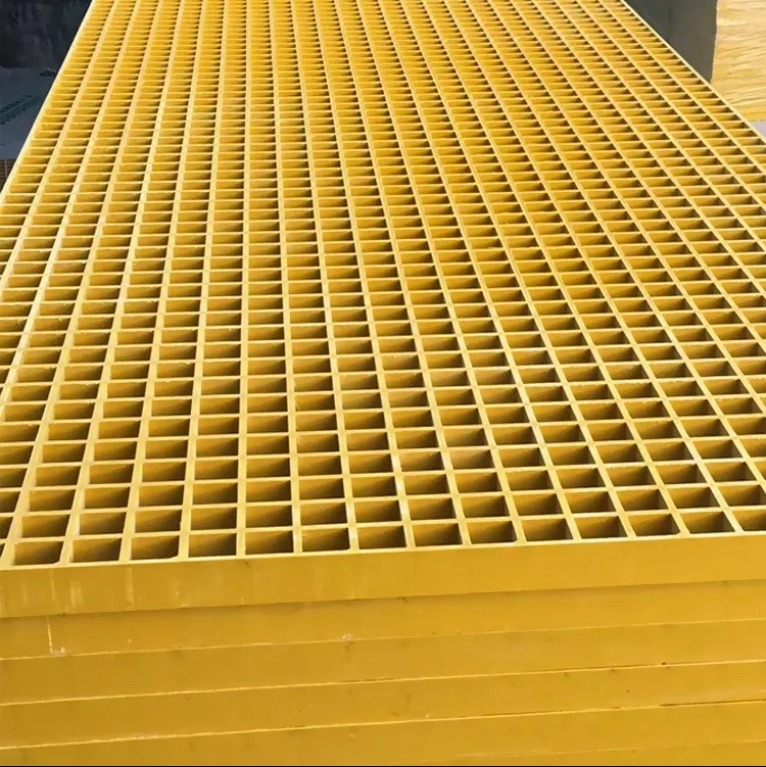

Fiberglass grating, also known as FRP grating (Fiber Reinforced Plastic grating), is a grid-like flooring material made from reinforced fiberglass and thermosetting resin. It comes in various types—molded, pultruded, and phenolic—to suit different industrial needs. The importance of proper installation cannot be overstated. A poorly installed fiberglass grating system may result in structural weakness, premature wear, or even hazardous workplace conditions.
For example, uneven load distribution or improper fastener placement could compromise the grating’s ability to withstand weight, leading to deformation or dislodgement. A systematic installation plan ensures that all panels are safely secured, load-bearing capacities are optimized, and environmental exposures are accounted for.
Before starting the installation, make sure you have all the necessary tools and materials. The table below outlines the essentials:
| Tool/Material | Purpose |
|---|---|
| Measuring tape | Accurate panel placement |
| Circular saw with carbide blade | Cutting fiberglass grating to size |
| Grinder/sander | Smoothing edges after cutting |
| FRP fastening clips | Securing panels to support structures |
| Stainless steel bolts/nuts | Corrosion-resistant fastening |
| Safety gear (gloves, goggles, mask) | Protection during cutting and grinding |
Proper PPE is mandatory. Cutting fiberglass can release fine particles that may irritate the skin or respiratory system. Always work in a ventilated area or use a dust collection system when possible.
Begin by inspecting the support structure and mapping out the grating layout. Measure the installation area carefully, allowing for slight expansion due to thermal fluctuations. Always ensure that the supports are level and structurally sound. A good rule of thumb is that the maximum unsupported span for molded FRP grating is usually around 1.2 meters (4 feet), but this can vary based on panel thickness.
Use a circular saw with a carbide-tipped blade to cut the grating to the required dimensions. Mark the cut lines with chalk or a wax pencil. After cutting, use a grinder to smooth the rough edges and remove sharp burrs. This step not only enhances aesthetics but prevents injury during handling.
Place the grating panels onto the support frames carefully, ensuring even spacing between panels (usually 6–10 mm). Uneven spacing may cause load misdistribution. Make sure the bearing bars of the grating run perpendicular to the support structure to maximize strength.
Use FRP-compatible clips such as M-clips, C-clips, or L-clips to fasten the grating panels. Position one clip at each corner and additional clips at intervals of approximately 60 cm (24 inches) along each edge. Tighten with stainless steel bolts and lock nuts to prevent loosening due to vibration or environmental changes.
After installation, walk across the grating to check for movement, creaking, or instability. If needed, reinforce with additional clips or realign panels. Conduct a static load test if required, especially in high-load or critical areas. The final inspection should ensure compliance with OSHA or local safety regulations.
Insufficient Fastening: Skimping on fasteners reduces the structural integrity and increases the risk of panel uplift.
Cutting Without Ventilation: Fiberglass dust is hazardous. Always use proper PPE and ventilation.
Ignoring Panel Orientation: Placing bearing bars parallel (instead of perpendicular) to supports greatly reduces load capacity.
Poor Edge Finishing: Leaving sharp edges not only causes injuries but can lead to micro-cracking over time.
To prolong the lifespan of your fiberglass grating, consider these routine maintenance practices:
Regular Cleaning: Use non-abrasive cleaners to remove dirt, oil, and corrosive substances.
Tightening Clips: Recheck fasteners every 6 months, especially in high-vibration environments.
Visual Inspection: Look for delamination, cracking, or unusual flexing.
UV Protection: For outdoor installations, consider using grating with UV-resistant resin to minimize degradation.
Yes. Fiberglass grating is highly resistant to UV rays, moisture, and corrosion, making it ideal for outdoor applications. Just make sure it includes UV inhibitors if prolonged sunlight exposure is expected.
With proper installation and maintenance, fiberglass grating can last 25–30 years or more, depending on environmental conditions and load factors.
No. While the panels may appear secure due to their weight, fasteners are essential for safety and structural integrity, particularly in high-traffic or vibration-prone environments.
Installing fiberglass grating is not just about laying panels on a frame. It's a technically demanding process that requires planning, precise execution, and long-term maintenance considerations. When installed properly, fiberglass grating offers unparalleled advantages in safety, longevity, and performance—especially in corrosive or industrial environments.
By following this guide, avoiding common pitfalls, and committing to regular inspections, you can ensure that your FRP grating system not only meets expectations but exceeds them.
