Industrial flooring is rarely the center of attention in facility design. Yet, it remains critical for operational safety, structural integrity, and workflow continuity. When flooring systems fail, production stops, and safety risks escalate.
Unprotected steel fails rapidly in harsh industrial environments. Moisture, chemicals, and physical wear attack the metal, leading to frequent safety audits, costly downtime, and expensive replacement cycles. Facility managers often find themselves trapped in a loop of maintenance that drains budgets and resources.

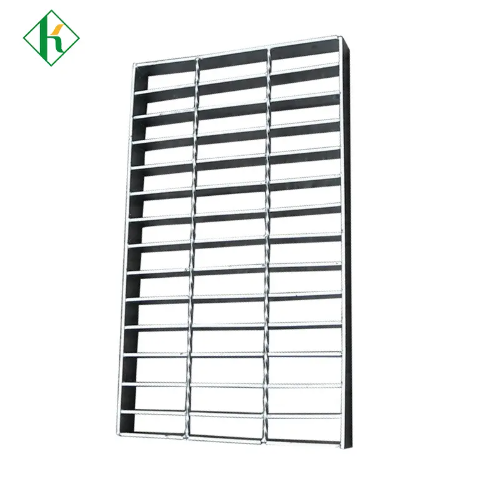

Galvanized Steel Grating represents a strategic solution to this problem. It is not just a building product; it is a balance between high load-bearing capacity and long-term corrosion resistance. By choosing the right grating, you ensure decades of service with minimal intervention.
This guide provides a deep dive into the technical specifications of galvanized grating. We will analyze the return on investment compared to alternative materials and outline selection criteria for specific industrial environments.
TCO Advantage: Galvanized grating offers a lower Total Cost of Ownership than painted steel due to near-zero maintenance over a 30-50 year lifespan.
Self-Healing Mechanism: The zinc coating provides sacrificial protection, preventing rust creep even if the surface is scratched.
Versatility: Suitable for 80% of industrial applications, excluding only extreme acidic or sanitary food-grade environments.
Load Efficiency: Offers high strength-to-weight ratios with up to 80% open space for light and air penetration.
Engineers favor galvanized steel not for its appearance, but for its predictability. The combination of carbon steel's structural rigidity and zinc's chemical properties creates a material that withstands aggressive abuse.
The protective power of galvanized grating comes from the metallurgical bond formed during the Hot-Dip Galvanization process. Unlike paint, which sits on the surface, zinc reacts with the steel to form zinc-iron alloy layers. This reaction creates a barrier that is harder than the base steel itself.
Furthermore, zinc acts as a Sacrificial Anode. In the presence of moisture, zinc corrodes preferentially to steel. If the grating surface is scratched or cut, the surrounding zinc sacrifices itself to protect the exposed steel core. This mechanism prevents rust creep, ensuring the corrosion resistance of galvanized steel remains intact even under mechanical stress.
Industrial structures must support heavy loads without adding excessive dead weight. Steel grating solves this through its open-grid design.
With approximately 80% open space, grating reduces the dead load on support beams significantly compared to solid plate flooring. Despite this openness, it maintains the capacity to support heavy rolling loads, from forklifts to truck traffic. This balance allows for lighter support structures and improved air circulation. For facilities looking for long-lasting steel grating, this strength-to-weight efficiency is a primary design factor.
When evaluating flooring materials, you must look beyond the sticker price. The true cost of industrial flooring is the sum of initial procurement and lifetime maintenance.
| Cost Factor | Painted Steel | Galvanized Steel | Stainless Steel |
|---|---|---|---|
| Initial CAPEX | Low | Medium | Very High |
| Maintenance Freq. | High (Repainting every 5-7 yrs) | Near Zero | Low |
| Downtime Costs | High (Shutdowns for repairs) | None | None |
| 30-Year TCO | High | Lowest | High |
Initial CAPEX for galvanized steel is higher than painted steel but significantly lower than stainless options. However, the maintenance costs for galvanized grating essentially zero out over time. You eliminate repainting cycles, sandblasting expenses, and the costly production shutdowns required for floor maintenance.
Not all grating is created equal. Understanding fabrication methods and quality indicators ensures you specify the correct product for your load requirements.
Welded Bar Grating: This is the industry workhorse. Manufacturers fuse bearing bars and cross rods using intense heat and pressure. It provides a rigid, rugged structure ideal for heavy industrial loads.
Press-Locked: Instead of welding, hydraulic pressure forces the cross bars into slots on the bearing bars. This creates a cleaner aesthetic, often preferred for architectural applications where visual appeal matters.
Riveted: This older style relies on reticulated truss action. It offers superior resistance to impact and heavy rolling loads, such as carts and forklifts, making it a premium choice for specific high-traffic zones.
The durability of the final product depends entirely on the galvanization process. A standard 7-step process—including degreasing, rinsing, pickling, and fluxing—must be followed rigorously.
Expert buyers pay close attention to the Pickling and Fluxing stages. Pickling uses acid to remove all mill scale and oxides from the steel. Fluxing then coats the steel to prevent oxidation before it enters the molten zinc bath. Without these steps, the zinc coating will not adhere properly to the steel matrix, leading to premature peeling.
Specifying the wrong series is a common purchasing error. The series generally refers to the spacing of the bearing bars.
Series 1 (30mm spacing): The industrial standard. It balances cost and strength, making it the default choice for general flooring.
Series 2 (40mm spacing): An economic option. The wider spacing reduces weight and cost, suitable for lighter loads or conveyor guards.
Series 3 (60mm spacing): Specialized for the mining industry. The wide gaps prevent mineral debris and rocks from accumulating on the walkway.
Understanding these series is one of the essential features of steel grating selection that impacts both budget and functionality.
Safety managers must also decide on the surface profile. Plain (Smooth) grating is easier to clean and suitable for dry areas. However, for most industrial flooring materials, Serrated surfaces are essential. The notched edges significantly increase the friction coefficient, preventing slips in wet or oily environments.
While galvanized steel is versatile, it is not the universal answer. Comparing it against alternatives helps clarify when it is the smartest choice.
The decision framework here relies on environment and hygiene. If your facility handles corrosive acids, operates offshore in high-salinity zones, or requires food-grade hygiene, Stainless Steel is the mandatory choice. For almost everything else—general manufacturing, warehousing, and external walkways—Galvanized Steel is the cost-effective sweet spot. While stainless offers higher yield strength, galvanized is sufficiently strong for most structural walkways.
Aluminum is lightweight and non-sparking. In explosive environments like refineries or chemical plants, the spark risk from steel is unacceptable; therefore, Aluminum is preferred. However, Aluminum has lower rigidity (modulus of elasticity) than steel. For spans requiring high stiffness and low deflection under load, advantages of galvanized grating become clear as it provides a more rigid platform.
FRP is popular for its chemical resistance, but steel wins on fire safety and impact durability. Steel does not burn or melt at standard fire temperatures, whereas FRP requires specific, expensive resins to be fire retardant. Additionally, steel withstands impact from dropped tools far better than brittle composite materials.
Deploying galvanized grating correctly requires matching the product specifications to the intended application area.
For large facilities, minimizing structural steel support helps control costs. Bar grating is ideal here because it can span long distances—up to 9 feet depending on the bar depth—without intermediate supports. This capability is central to modern steel grating applications in warehousing and logistics centers.
Outdoor trenches are constantly exposed to rain, runoff, and road salts. Galvanization is non-negotiable in these settings to prevent rapid deterioration. Furthermore, engineers must specify load ratings, such as H-20, for areas that will see vehicle traffic.
Architects increasingly use grating for sunshades and building facades. The angled bars provide passive cooling by blocking direct sunlight while allowing natural light and air to penetrate. For public accessibility, Close-Mesh options with spacing under 0.5 inches ensure ADA compliance, preventing wheelchair casters or high heels from getting stuck.
Stair treads require high visibility. Galvanized treads typically feature a nosing made of checker plate or cast abrasive material. This clearly defines the edge of the step, improving visibility and slip resistance for personnel carrying loads.
Successful installation is just as important as material selection. Poor installation practices can compromise even the most durable grating solutions.
You have two primary methods for securing grating: saddle clips or welding. Saddle clips are recommended for areas requiring access to equipment below, as they allow for easy removal of maintenance panels. Welding provides a permanent structural lock but makes future access difficult. Crucially, pay attention to Span Orientation. Bearing bars must span from support to support. Placing grating sideways where the weak cross-rods span the gap is a catastrophic failure risk.
In reality, installers often need to cut panels on-site to fit around pipes or columns. These cuts expose the raw steel core. Expert advice dictates that any exposed cut end must be sealed immediately with zinc-rich paint, often called Cold Galv. This restores the protective barrier and prevents rust from undercutting the surrounding alloy layers.
While low maintenance, zero maintenance is a myth. Periodic inspections are necessary. Check hold-down clips, as vibration from machinery can loosen them over time. Also, inspect for mechanical damage that may have penetrated the alloy layer deep enough to expose steel.
Galvanized Steel Grating serves as the workhorse of industrial flooring. It balances initial cost, extreme durability, and high load capacity better than any alternative material in standard industrial settings. While it may not suit extreme chemical or sanitary environments, it remains the default choice for projects where longevity is non-negotiable and aesthetics are secondary to function.
Before specifying your next project, consult load tables and span charts carefully. Ensuring your grating meets the specific load requirements of your facility is the first step toward long-term safety and compliance.
A: Eventually, yes, but it takes decades. You might see White Rust (a white powdery stain) from wet storage, which is cosmetic. Red Rust indicates the zinc is depleted. In normal industrial environments, galvanized steel can resist red rust for 30 to 50 years due to the sacrificial protection of the zinc coating.
A: Yes, but you must exercise caution. Welding galvanized steel produces toxic zinc fumes. Proper ventilation and personal protective equipment (PPE) are mandatory. After welding, you must clean the weld zone and apply a zinc-rich paint to restore corrosion resistance to the heat-affected area.
A: Bar Grating consists of welded metal strips and is designed for structural load-bearing applications like walkways and platforms. Safety Grating (often called plank grating) is made from punched sheet metal. It offers superior traction for light-duty applications but lacks the heavy structural capacity of bar grating.
A: Span always refers to the direction of the bearing bars (the tall, thick bars). Width refers to the direction of the cross rods. You must measure the distance between supports to determine the Span. Ordering this backward is a common and costly mistake.
A: If the grating will be used outdoors, in oily environments, or areas prone to moisture, yes. The extra traction prevents slip-and-fall accidents. However, for dry, indoor storage mezzanines, plain grating is sufficient and easier to clean.
