Managing an industrial facility often involves a difficult paradox. You need a surface robust enough to support massive machinery, forklifts, and racking systems, yet you also need to prevent dangerous liquid accumulation and stagnant air pockets. Traditional solid concrete or epoxy surfaces excel at supporting weight, but they frequently fail in wet or fume-heavy environments. In these settings, solid floors create barriers that trap heat, block light, and allow hazardous fluids to pool, increasing slip risks and maintenance costs.
The solution lies in moving beyond solid surfaces toward open-grid designs. Steel Flooring functions not merely as a passive surface, but as an active facility system. It addresses three critical operational challenges simultaneously: providing structural support (strength), enabling environmental control (ventilation), and facilitating immediate hazard reduction (drainage). By integrating these functions, facility managers can transform their flooring from a simple maintenance liability into a strategic asset that enhances safety and operational efficiency.
Combined Utility: Steel flooring systems (grating) function as both structural platforms and safety systems, allowing up to 80% open area for air/light/water passage.
Compliance Criticality: Open mesh designs are often required for NFPA fire suppression (sprinkler penetration) and OSHA anti-slip mandates in washdown areas.
Material ROI: While initial material costs may be higher than plywood or basic concrete overlays, galvanized and stainless steel options offer 50+ year lifespans with minimal maintenance.
Load Specificity: Selection must rely on Live Load calculations; heavy-duty welded bar grating handles forklift traffic, while expanded metal is restricted to pedestrian walkways.
The primary mandate for any industrial floor is structural integrity. However, unlike solid concrete slabs where load distribution is relatively uniform, open-grid systems require precise engineering to handle specific stress points. Understanding Steel flooring strength is about matching the grid design to the dynamic realities of your facility.
When specifying a floor, you must distinguish between static and dynamic forces. Static loads refer to stationary weights, such as racking units, heavy inventory pallets, or fixed machinery. These loads are constant and predictable. In contrast, dynamic loads involve movement. Forklift traffic, pallet jacks, and vibrating machinery exert significantly more stress on the floor structure. A grid that can easily hold a static two-ton machine might deform under a moving one-ton forklift due to the braking and turning forces involved.
You must also differentiate between concentrated and uniform loads. Industrial flooring systems are rated differently for distributed weight versus point impact. A uniform load calculation assumes weight is spread evenly across the panel, like stacked boxes. A concentrated load calculation accounts for point impacts, such as the wheel of a heavy cart or a dropped tool. Ignoring point load specifications is a common cause of premature grid failure and bar deformation.
The manufacturing method directly influences the floor's capacity. Two primary types dominate the heavy industrial sector:

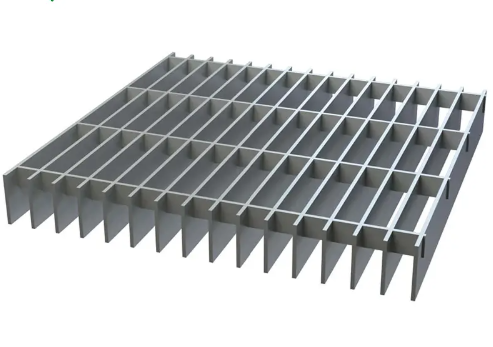

Welded Bar Grating: This is the workhorse of industrial flooring. Manufacturers fuse bearing bars and cross rods together at high temperatures to create a single, rugged unit. This permanent bond provides superior resistance to lateral twisting, making it ideal for high-impact areas and heavy rolling loads. When searching for Steel grating for industrial floors that must endure vehicle traffic, welded options are generally the standard.
Press-Locked Grating: Instead of welding, hydraulic pressure forces cross rods into pre-slotted bearing bars. This results in a cleaner aesthetic and a smooth surface, often preferred for architectural applications. While it maintains significant lateral stability, it is typically used where visual appeal matters alongside structural performance, such as in public-facing walkways or high-end manufacturing zones.
Strength is not just about preventing collapse; it is about preventing bounce. Engineers use a rule of thumb known as the 1/4 inch deflection limit. This standard dictates that a flooring panel should not sag more than 1/4 inch under its design load. While a floor might structurally hold the weight without breaking, excessive deflection creates a trampoline effect. This bounciness unnerves pedestrians, destabilizes rolling carts, and can cause tripping hazards. Always prioritize material depth to maintain rigidity, ensuring a solid feel underfoot.
In many modern facilities, the floor acts as a vertical barrier that complicates environmental control. Solid mezzanines block airflow and obstruct fire suppression systems. Ventilation in steel flooring transforms this barrier into a permeable membrane, solving critical safety and utility issues.
A major challenge in multi-level warehousing is the Vertical Stack Problem. If you build a solid mezzanine or catwalk, the fire sprinklers on the ceiling cannot reach the fire on the levels below. This forces facility owners to install expensive in-rack sprinkler retrofits underneath every new platform.
Steel flooring offers a 50%+ open area solution. Because the mesh allows water to pass through freely, fire marshals often classify these levels as permeable. This allows water from the main ceiling sprinklers to suppress fires on lower levels effectively. This feature alone can drastically reduce the Total Cost of Ownership (TCO) by eliminating the need for complex auxiliary plumbing systems.
Beyond fire safety, open flooring plays a vital role in air quality. In industries like automotive manufacturing, foundries, or chemical processing, heat and fumes naturally rise. Solid floors trap these hazards, creating hot zones and poor air quality for workers on lower levels.
Permeable Steel flooring features allow for natural vertical convection. HVAC systems operate more efficiently because air circulates freely throughout the entire volume of the building rather than being compartmentalized. Furthermore, visibility improves significantly. Security teams and managers can monitor workflow, spot unauthorized access, or identify safety incidents across different levels without needing blind-spot cameras. This see-through capability enhances overall facility security.
Water, oil, and chemical spills are inevitable in industrial settings. On concrete, these liquids pool, creating hydroplaning risks for forklifts and slip hazards for personnel. Implementing Drainage in steel flooring changes the safety equation by removing the hazard immediately.
Open steel flooring provides passive liquid management. Liquids pass instantly through the mesh, preventing the formation of puddles. This is crucial for maintaining traction for rubber-tired vehicles and work boots. Additionally, the open design facilitates debris passage. In machining or milling operations, small metal filings and dust can fall through the grating into catch pans or cleaning zones below. This prevents the dangerous buildup of waste material around machinery, keeping the immediate workspace clear and reducing fire risks from accumulated combustibles.
Not all steel grating surfaces are equal. While smooth bars are comfortable for walking, they become slippery when wet or oily. For high-risk zones, specifying a serrated surface is essential. Serrated grating features notched edges on the bearing bars, which bite into shoe soles to provide maximum grip. In Industrial facility flooring applications involving petrochemicals, automotive fluids, or washdown bays, serrated surfaces are often required to meet OSHA slip-resistance standards.
In food processing and pharmaceutical sectors, hygiene protocols are strict. Facilities often require high-pressure, high-temperature washdowns. Here, the material choice shifts toward stainless steel. Unlike porous concrete which can harbor bacteria in micro-cracks, stainless steel grating resists corrosion from harsh cleaning chemicals and prevents microbial growth. The open design ensures that wash water and cleaning agents drain away completely, leaving no standing water where contaminants could breed.
Choosing the right material impacts both the longevity of the floor and the maintenance budget. While engineers focus on load, buyers must focus on the environment. Durable flooring solutions require matching the alloy to the atmospheric conditions.
The following table outlines the three primary material choices for industrial grating:
| Material Type | Key Characteristic | Ideal Environment | Cost Profile |
|---|---|---|---|
| Plain Carbon Steel | High strength, susceptible to rust without coating. | Dry, climate-controlled warehousing; low humidity. | Lowest Initial Cost |
| Hot-Dip Galvanized | Zinc coating provides self-healing rust protection. | Outdoor walkways, humid plants, general industry. | Best Value (Long Life) |
| Stainless Steel (304/316) | Resists chemical corrosion and extreme sanitation. | Food processing, chemical plants, offshore marine. | High Premium |
Hot-Dip Galvanized steel is the industry standard for most applications. It offers a set and forget durability, often lasting 50+ years with minimal maintenance. However, for acidic or saline environments, 304 or 316 Stainless Steel is mandatory to prevent structural failure.
Beyond material cost, Steel flooring solutions offer economic advantages during installation and repair. Concrete floors require curing time, and epoxy coatings need days to dry, halting production. Steel grating arrives as prefabricated panels that installers can secure rapidly, reducing facility downtime. Furthermore, maintenance is modular. If a forklift damages a section of concrete, you face a complex patching process. If a steel panel is damaged, maintenance teams can unbolt and replace just that specific section, leaving the rest of the floor undisturbed.
Selecting the correct grating specification can be complex. Facility managers should follow a three-step decision matrix to ensure they specify the right Steel flooring features for their needs.
First, analyze what moves across the floor. If the area sees only foot traffic, light-duty grating or expanded metal is sufficient and cost-effective. However, if the area supports pallet jacks or forklifts, you must specify heavy-duty welded grating. Always check the bar thickness and spacing to ensure the wheels of your equipment will not fall between the bars or deform the steel.
Next, evaluate the chemical and physical exposure. Is the area exposed to corrosive acids? If so, stainless steel or Fiber-Reinforced Plastic (FRP) alternatives might be necessary. Is the environment wet or oily? In these cases, a serrated surface is non-negotiable for safety. Matching the surface treatment to the environmental hazard is critical for liability reduction.
Finally, check local codes. For public access areas or walkways that must be ADA compliant, you need Close Mesh grating. This design prevents high heels, canes, or crutches from getting stuck. For fire safety, verify that the open area percentage of the grating meets the local fire marshal's requirements for sprinkler pass-through, avoiding costly retrofits after installation.
Steel flooring represents a significant investment in operational efficiency. It moves beyond the passive role of traditional flooring to become an active component of facility safety and utility. By providing superior strength, enabling essential ventilation, and ensuring rapid drainage, steel grating reduces long-term maintenance overhead and lighting costs while improving safety metrics.
Before requesting a quote, facility managers should conduct a thorough Load and Environment Audit. Define your live loads, identify chemical exposures, and verify fire code requirements. Prioritizing the correct material grade—whether Galvanized for longevity or Stainless for hygiene—and the correct load rating now will prevent costly retrofits and operational disruptions later.
A: Yes, but you must select specific Heavy-Duty grades. Standard pedestrian grating will deform under vehicle weight. You need to specify High Capacity welded steel grating, which features thicker bearing bars and tighter spacing designed to withstand dynamic rolling loads and wheel impact without structural failure.
A: It significantly improves it. The open mesh design allows light to penetrate to lower levels. This reduces shadows and decreases the need for auxiliary lighting fixtures beneath mezzanines and catwalks, leading to energy savings and better visibility for safety inspections.
A: Yes. It is often used as a raised floor system (plenum). This installation method creates a gap between the concrete and the steel walking surface, allowing facility managers to run cables, piping, or drainage systems underneath, or to level out uneven concrete subfloors.
A: Standard grating has smooth bearing bars, providing a comfortable surface for walking in dry conditions. Serrated grating features notched edges cut into the bars. These notches provide maximum grip and slip resistance, making them essential for areas prone to oil, water, or grease accumulation.
A: You should specify Close Mesh grating, which has narrower gaps between the bearing bars. Alternatively, for existing installations, you can install a secondary wire mesh overlay or toe boards along the edges to catch small items and protect personnel working below from falling objects.
