Industrial walkway grating is often treated as a simple line item in construction bids, yet it serves as a critical structural safety component. Viewing it merely as a commodity is a mistake; failure here leads to severe operational downtime and significant liability. Facility managers and engineers face a difficult challenge when selecting these materials. You must balance complex load requirements—distinguishing between static storage weights and dynamic foot traffic—against harsh environmental factors like corrosion or vibration. Furthermore, strict regulatory compliance with OSHA and ANSI standards must be met without breaking the project budget.
This guide moves beyond basic product catalogs to provide a deep dive into technical specification. We will cover how to accurately interpret load tables, navigate essential compliance checklists, and calculate material ROI. By understanding the nuances of structural integrity and legal mandates, you can make procurement decisions that ensure long-term safety and operational efficiency.
Load Logic: Why the Uniform Load figure on a spec sheet isn't the only metric that matters (Concentrated Load & Deflection).
Compliance Criticals: The specific OSHA 1910 and 1926 mandates regarding maximum gaps (1 inch) and capacity safety factors (4x).
Material ROI: When to choose Carbon Steel for pure strength vs. FRP for long-term corrosion resistance.
Specification Decoding: How to read industry standard nomenclature (e.g., 19-W-4) to prevent ordering errors.
Evaluating structural integrity requires more than checking a single weight rating. Engineers must distinguish between how loads are applied to the surface. Misinterpreting these values is a common cause of material failure or excessive wear.
Manufacturers provide load tables that list two distinct capacity metrics. Understanding the difference ensures you select the right industrial walkway grating for your specific application.
Uniform Load (U): This rating is expressed in pounds per square foot (lb./ft.²). It assumes the weight is distributed evenly across the entire surface of the grating. This metric is relevant for general foot traffic, crowded walkways, or areas used for material storage where boxes or pallets cover the span.
Concentrated Load (C): This rating measures weight applied to a specific point, typically calculated at the mid-span of the grating panel. This figure is critical for maintenance zones where heavy equipment is set down, or for aisles subjected to rolling loads like carts or dollies. A grating might handle a high uniform load but buckle under a heavy, focused point load.
Capacity is not just about whether the steel breaks; it is about how much it bends. Deflection refers to the amount the grating sags under weight. The industry standard limit is typically L/240 (span divided by 240) or a maximum of 1/4 inch.
Why it matters: Even if the grating technically supports the load without collapsing, high deflection creates bounciness. This instability unnerves workers, causes fatigue, and creates tripping hazards. A rigid walkway inspires confidence and maintains productivity, whereas a flexible surface feels unsafe to personnel working at heights.
There is a direct physical relationship between the depth (thickness) of the bearing bars and the maximum span the grating can cover safely. Deep bearing bars are stronger but more expensive and heavier.
Decision Rule: To balance economy and safety, start your calculation with the widest practical bearing bar spacing (such as 19-space). If the load requirements are not met at that spacing, increase the bearing bar depth (e.g., from 1 inch to 1.5 inches) before you reduce the spacing between bars. Increasing depth adds strength faster than adding more steel bars does.
Regulatory bodies mandate safety margins to account for unexpected stress. OSHA 1926.451(a) explicitly requires that scaffold and walkway components must be capable of supporting at least 4 times the maximum intended load. This 4:1 ratio ensures that minor calculations errors or unforeseen heavy loads do not result in catastrophic collapse.
For facility managers, compliance is about risk management. Ignoring specific mandates regarding gaps, surfaces, and guardrails exposes the company to legal action and fines.
OSHA 1910.22 outlines the general requirements for all walking-working surfaces. The regulation dictates that surfaces must be kept clean, structurally sound, and free of sharp edges or burrs that could puncture protective clothing.
The 1-Inch Rule: A critical specific requirement is found in OSHA 1926.451(b). This mandates that spaces between platform units must not exceed 1 inch (2.5 cm). This prevents tools, bolts, or debris from falling through the floor and striking workers below. It also prevents tripping hazards where a boot toe could get caught in a wide gap.
Falling object protection is a major focus for safety inspectors. OSHA requires toeboards on elevated walkways to stop items from sliding off the edge.
The Toeboard Requirement: Standard kick plates must be at least 3.5 inches high and able to withstand 50 pounds of force.
Solution: Smart procurement can save installation labor. Instead of retrofitting kick plates after installation, evaluate grating with integrated toeboards. These are manufactured with upturned side rails or welded plates. This integration ensures seamless compliance and eliminates the risk of kick plates loosening over time due to vibration.
When specifying products, reference the correct standards to ensure quality control:
NAAMM (MBG 531): Considered the Bible of the industry. It defines tolerances, manufacturing standards, and load tables for metal bar grating.
ANSI A1264.1: This standard specifically covers the safety requirements for workplace floor and wall openings, stairs, and railing systems.
ASTM Testing: Look for specific testing protocols to verify material quality. For example, ASTM A123 governs the thickness and quality of zinc coating on hot-dip galvanized steel, ensuring corrosion resistance meets expectations.
Selecting the right material involves balancing Total Cost of Ownership (TCO) with environmental exposure. A cheaper initial material may cost double in maintenance if it corrodes within three years.
| Material | Best Application | Pros | Cons |
|---|---|---|---|
| Carbon Steel | High-traffic warehouses, mezzanines, dry industrial environments. | Highest strength-to-cost ratio; extremely durable under heavy loads. | Requires galvanizing to prevent rust; heavy and difficult to install manually. |
| Stainless Steel | Food processing, pharmaceuticals, commercial kitchens. | Maximizes sanitary compliance; resists aggressive cleaning chemicals. | High upfront cost; often considered overkill for non-hygienic zones. |
| Aluminum | Rooftop walkways, wastewater treatment plants, offshore platforms. | High strength-to-weight ratio; spark-resistant (safe for explosive zones). | More expensive than carbon steel; lower load capacity at similar depths. |
| Fiberglass (FRP) | Chemical plants, electrical substations, magnetic imaging facilities. | Non-conductive, electromagnetically transparent, completely corrosion-proof. | Must check for UV stability if used outdoors; brittle under impact. |
For most general industrial applications, Steel Grating is the standard choice. It offers the best load-bearing capacity per dollar. However, in environments with moisture, it must be hot-dip galvanized to prevent rapid oxidation.
FRP is increasingly popular in corrosive environments where steel rots. When specifying FRP, safety officers must verify the fire rating. Always look for an ASTM E84 Class 1 rating, which certifies low flame spread and smoke density, ensuring the walkway does not become fuel during a fire.
Slips and falls are a leading cause of workers' compensation claims. The surface profile of your walkway determines the friction coefficient and worker safety in wet conditions.
Standard bearing bars come with a smooth top surface. These are easier to clean and paint, making them suitable for dry, debris-free areas like pedestrian mezzanines. However, in areas with fluid, oil, or grease presence, smooth bars become dangerous.

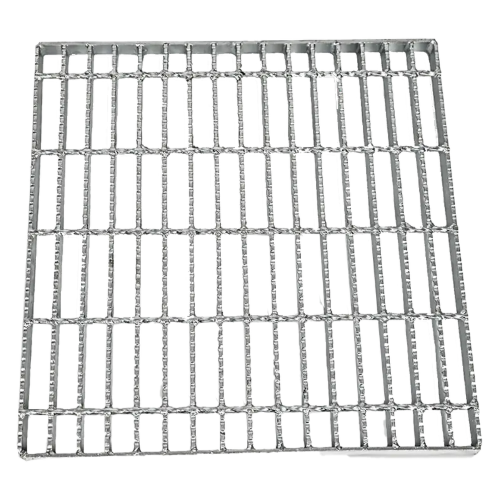

Serrated grating features notched bearing bars. This texture digs into boot soles, providing significantly better traction. Studies suggest serration increases the friction coefficient by 30-40% compared to smooth steel. While slightly harder to clean, the safety trade-off is essential for active manufacturing floors.
For extreme conditions involving mud, ice, or snow, standard bar grating may clog. In these scenarios, use plank-style safety grating with specific patterns:
Diamond Pattern (Grip Strut): Features large diamond-shaped openings with serrated edges. It offers aggressive traction.
Button Pattern (Perf-O-Grip): Uses circular punched holes for a slightly less aggressive surface that is easier on the knees if workers must kneel.
Feature: The large open patterns in these designs allow heavy debris and fluids to drain immediately. This self-cleaning action ensures that the boot always makes contact with the metal, not the sludge on top of it.
Ordering errors lead to costly restocking fees and project delays. Translating requirements into accurate purchase orders requires understanding industry nomenclature.
Standard grating is often designated by a code like 19-W-4. Here is how to decode it:
19: This refers to the bearing bar spacing in sixteenths of an inch. 19 means the bars are spaced 19/16 inches (1-3/16) on center. This is the industry standard spacing.
W: This indicates the construction type, in this case, Welded.
4: This refers to the cross bar spacing in inches. Cross bars hold the bearing bars upright and provide stability.
The method used to join the bars affects durability and application:
Welded: The standard for steel. Cross bars are electrically fused to bearing bars. It is rigid, durable, and cost-effective.
Pressure-Locked: Cross bars are forced into slots in the bearing bars under high hydraulic pressure. This creates a clean look with no weld splatter, often used for architectural applications or where close-mesh spacing is needed.
Riveted: The oldest form of grating construction. Riveted grating is superior for areas with high vibration or heavy rolling loads. The rivets absorb truss stress better than rigid welds, which can crack under constant vibration.
How you attach the grating to the support steel matters. Saddle clips are the most common mechanical fastener. They bridge two bearing bars and bolt to the support.
Advice: Use saddle clips for areas requiring future access to pipes or wiring below the walkway; they can be removed easily. For permanent, vibration-heavy areas, direct welding is safer, as bolts can loosen over time.
Effective industrial walkway grating selection is a triangulation of three critical factors: Load Capacity (Uniform vs. Concentrated), Environmental Material fit, and strict OSHA Compliance. Prioritizing one while ignoring the others invites risk. A walkway that is strong enough but slippery is a liability; a walkway that is corrosion-proof but deflects excessively is a hazard.
Remember this final warning: Over-specifying costs budget, but under-specifying costs lives. Do not rely on guesswork or loose estimates. Before finalizing your Bill of Materials, consult with a structural engineer to verify your span calculations against current NAAMM load tables.
A: The maximum span depends entirely on the bearing bar depth, material, and load requirement. However, for standard 1-inch to 1.5-inch deep steel grating under typical pedestrian loads, spans usually range from 2 feet to 6 feet. Exceeding the recommended span creates dangerous deflection.
A: OSHA does not explicitly require the grating itself to be yellow. However, OSHA 1910.144 designates yellow as the standard color for marking physical hazards, such as stumbling hazards or elevation changes. Many facilities paint grating boundaries yellow to improve visibility and safety.
A: Only if you specify Heavy Duty grating. Standard pedestrian bar grating is designed for foot traffic and will fail catastrophically under the concentrated rolling wheel loads of a forklift. Heavy Duty grating uses much thicker bearing bars and stronger welding.
A: Bar grating consists of parallel bearing bars held together by cross rods, forming an open grid. Safety grating typically refers to metal planks (like Grip Strut) formed from a single sheet with punched traction patterns (diamond or round holes). Safety grating usually offers higher slip resistance but lower load capacity over long spans compared to heavy bar grating.
