Grating is a critical component in various industrial and architectural applications, used for flooring, walkways, platforms, and drainage covers. But when choosing the right material for grating, the options can seem overwhelming. Among steel, aluminum, plastic, and composite materials, fiberglass grating is increasingly gaining traction due to its strength, corrosion resistance, and lightweight structure. So, what material is best for grating—and why is fiberglass grating often the most versatile option?
Grating materials differ in performance, durability, and application suitability. Traditionally, metal grating—like stainless steel or galvanized steel—was the go-to choice for industrial settings. However, with evolving needs and harsher operating environments, composite materials, particularly fiberglass-reinforced plastic (FRP), have carved a niche.
Let’s briefly compare the most common materials used for grating:
| Material | Strength | Corrosion Resistance | Weight | Cost | Lifespan |
|---|---|---|---|---|---|
| Steel | Very High | Low | Heavy | Moderate | Moderate |
| Aluminum | Moderate | Moderate | Light | Higher | Good |
| Plastic | Low | High | Very Light | Low | Fair |
| Fiberglass (FRP) | High | Very High | Light | Moderate | Excellent |
As the table shows, fiberglass stands out as a balanced and high-performing grating material, making it a preferred choice across sectors like marine, wastewater treatment, chemical plants, and food processing facilities.

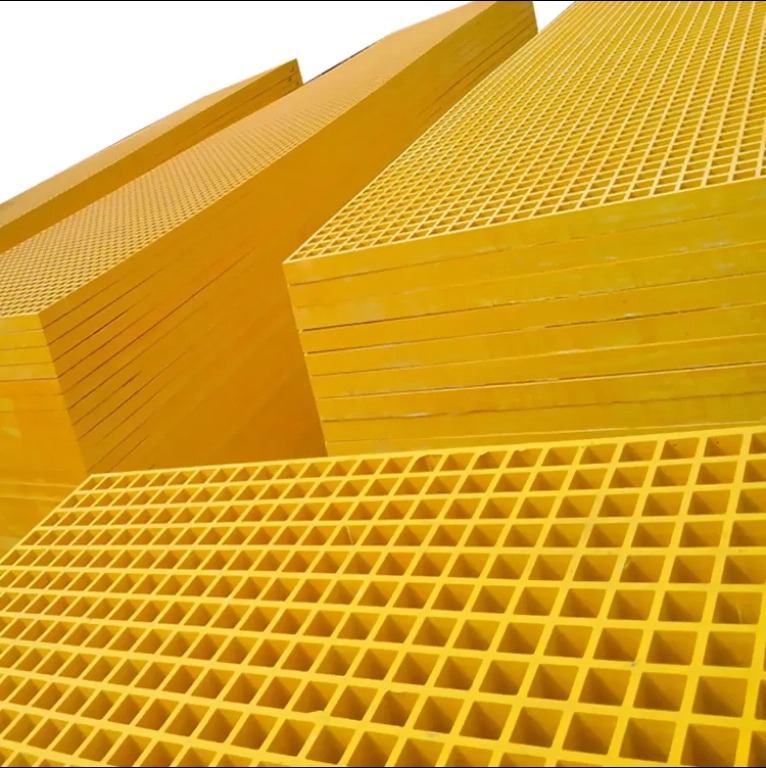

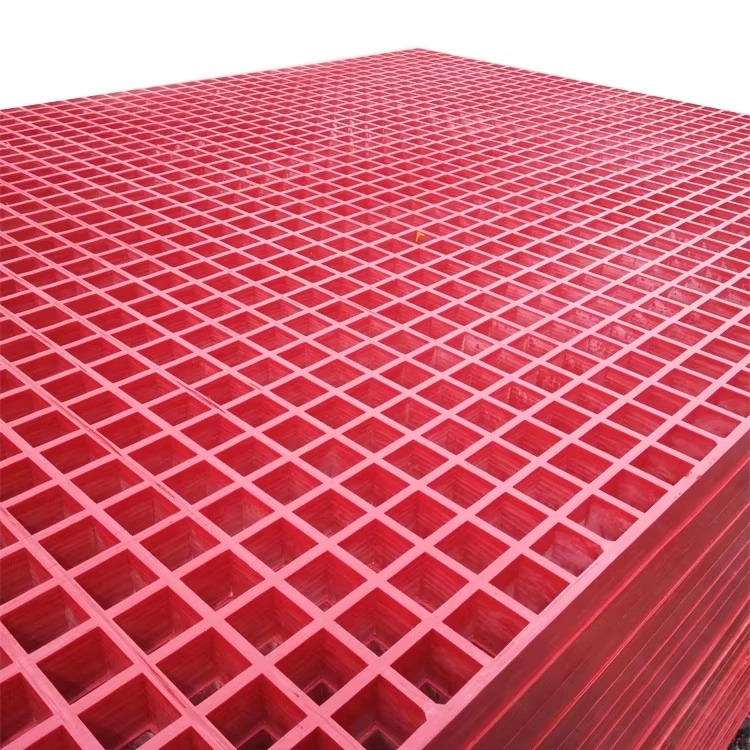

Fiberglass grating, also known as FRP grating, is a composite material made by combining glass fiber (for strength) with a resin matrix (for binding and corrosion resistance). The most common resins used include:
Isophthalic Polyester Resin – Excellent chemical resistance and affordability.
Vinyl Ester Resin – Superior chemical and heat resistance for aggressive environments.
Phenolic Resin – Flame retardant and low smoke emission, ideal for oil & gas or marine industries.
The grating is manufactured through two primary methods:
Molded FRP Grating – Produced by layering resin and fiberglass in a mold, forming a uniform, one-piece construction. Ideal for areas needing bidirectional strength.
Pultruded FRP Grating – Made by pulling fiberglass strands through a resin bath and a heated die. It’s suitable for applications requiring higher load-bearing capacity.
This dual-component structure of fiberglass and resin gives FRP grating its signature properties: non-conductivity, corrosion resistance, and impressive mechanical strength, all at a fraction of the weight of metal grating.
When comparing fiberglass grating to steel or aluminum grating, several distinct advantages come into focus:
Unlike metal, fiberglass grating is inherently resistant to acidic, alkaline, and saline environments. This makes it the material of choice for chemical plants, water treatment facilities, and coastal structures.
Fiberglass grating can offer the same load-bearing capacity as steel but at less than half the weight. This reduces shipping costs and eases installation, especially in elevated or difficult-to-access locations.
Fiberglass grating is non-slip, non-sparking, and electrically non-conductive. These features dramatically reduce workplace hazards, especially in explosive or electrically sensitive zones.
Once installed, FRP grating requires virtually no upkeep. It doesn’t rust, warp, or crack, making it cost-effective over time, despite its initial moderate pricing.
The versatility of fiberglass grating allows it to be used in a broad range of environments. Common applications include:
Chemical Processing Plants – Withstands corrosive spills and chemical fumes.
Marine and Offshore Platforms – Resists saltwater corrosion, lightweight for floating structures.
Wastewater Treatment Facilities – Non-slip surfaces and chemical durability.
Food & Beverage Facilities – Hygienic, easy to clean, non-toxic materials.
Mining Operations – Strong enough for heavy loads, resists mineral acids.
Its growing adoption across these industries speaks volumes about its performance and value.
While fiberglass is lighter, it’s not stronger than steel in absolute terms. However, when considering strength-to-weight ratio, fiberglass often outperforms steel in practical applications. It’s strong enough for most industrial uses while offering better flexibility and corrosion resistance.
Absolutely. Fiberglass grating is UV-stabilized and highly weather-resistant, making it ideal for outdoor use, even under extreme temperatures or direct sunlight.
Fiberglass grating can be installed using simple hand tools. It can be cut to size on-site using saws with diamond-tipped blades. Fastening clips, stainless steel hardware, and specially designed supports are used for securing the panels.
No. One of the major safety benefits of fiberglass grating is its non-conductivity, making it ideal for electrical substations, battery rooms, and high-voltage areas.
With proper installation, fiberglass grating can last over 20 years even in harsh environments. It doesn’t suffer from oxidation or chemical decay like metal.
When it comes to selecting the right material for grating, fiberglass isn’t just an alternative—it’s often the superior solution. Its unique balance of lightweight structure, corrosion resistance, durability, and safety features makes it ideal for both industrial and commercial applications. Whether you're looking to reduce maintenance, improve worker safety, or ensure long-term performance in harsh environments, fiberglass grating should be at the top of your list.
As industries evolve, the demand for smarter, safer, and more sustainable materials will only grow. Fiberglass grating answers this demand with precision, proving that innovation doesn't always come from new inventions—but from improving and optimizing existing technologies.
