Bridging the gap between industrial durability and architectural beauty is a constant challenge in high-traffic public zones. Architects and facility managers often face a difficult trade-off when selecting flooring materials. You need a solution that withstands the elements and heavy crowds, yet it cannot look like a factory floor or create liability issues. Selecting the wrong material often leads to trip hazards, exclusion of wheelchair users due to ADA non-compliance, and jarring aesthetic clashes with the surrounding landscape.
The stakes are high. A material failure in a public park or bridge isn't just a maintenance headache; it is a potential lawsuit and a safety risk. This guide evaluates outdoor walkway grating based on three critical pillars: pedestrian safety (heels and wheels), environmental resilience, and visual transparency. We will explore how to specify grating that serves both the structural requirements of the engineer and the design vision of the architect.
Heels & Wheels Rule: Public space grating must satisfy ADA requirements (max ½” openings) to accommodate wheelchairs, strollers, and high heels, unlike standard industrial flooring.
Material Hierarchy: Galvanized steel offers the best TCO for heavy spans; FRP provides superior comfort and corrosion resistance in coastal/wetland settings; Stainless steel offers the premium architectural look.
Ecological Impact: High open area percentages (60%+) are critical for allowing sunlight and rain to reach vegetation underneath boardwalks.
Aesthetics vs. Grip: Press-locked or swage-locked designs offer a cleaner visual line than welded industrial grating without sacrificing load capacity.
Specifying grating for a refinery is fundamentally different from specifying it for a botanical garden. In industrial settings, safety managers can mandate steel-toed boots. In public spaces, you have zero control over what pedestrians wear. This uncontrolled footwear environment changes every parameter of your material selection.
In an industrial zone, workers wear thick-soled boots that bridge wide gaps easily. In a public park, visitors wear stilettos, flip-flops, running shoes, or they might even walk barefoot. This diversity demands a shift in specification strategy.
The primary decision criterion becomes the mesh size. You must specify Close Mesh or Heel-Proof grating. These products feature opening widths of ¼ inch or ½ inch at most. Standard industrial openings (often roughly 1 inch by 4 inches) are dangerous traps for high heels and can cause serious ankle injuries. By tightening the mesh, you transform a hazard into a safe, walkable surface for everyone.
Beyond safety, transparency is a major architectural driver. We evaluate this using Open Area percentages, which typically range between 60% and 80% for high-quality architectural grating. This metric serves two distinct purposes.
Ecologically, high transparency is vital for boardwalks traversing wetlands or protected areas. Solid concrete or wood planks create a dead zone underneath the path where nothing grows. High-open-area grating allows sunlight and rain to penetrate the walkway. This sustains the vegetation below, reducing the environmental footprint of the structure.
Visually, transparency creates a floating aesthetic. This style has gained immense popularity in projects similar to New York's High Line Park. The walkway appears less intrusive, blending into the horizon rather than cutting through it with a heavy, solid line.
Engineers calculate deflection to ensure the bridge won't collapse. However, for pedestrians, deflection is about the feeling of safety. If a lightweight bridge bounces too much, it causes vertigo or discomfort, even if the structure is perfectly safe. The walkway must feel rigid.
Noise is another overlooked factor. Metal on metal can produce a loud clanking sound as crowds move. This noise pollution ruins the serenity of a nature park. Using Steel Grating with proper cushioned fasteners, or switching to Fiberglass Reinforced Plastic (FRP), can significantly dampen this noise. FRP, in particular, offers a warm touch and absorbs impact, making it quieter and often more pleasant to walk on.
Choosing the right material is a balance of load requirements, environmental exposure, and budget. Below is a comparison of the three primary contenders for outdoor public spaces.
| Material | Best Use Case | Primary Advantages | Potential Drawbacks |
|---|---|---|---|
| Steel (Galvanized & Stainless) | Long-span pedestrian bridges, urban parks, high-vandalism areas. | Highest load-to-weight ratio; durable Press-locked options; low TCO in dry areas. | High heat retention in summer; galvanization patina turns gray over time. |
| Fiberglass (FRP) | Coastal boardwalks, wetlands, nature trails, corrosive environments. | Corrosion-proof; warm to the touch; micro-deflection reduces foot fatigue. | Requires UV inhibitors to prevent fading; lower span strength requires more support. |
| Aluminum | Rooftop walkways, weight-sensitive retrofits. | Extremely lightweight; natural corrosion resistance. | Higher material cost; softer metal is prone to dents and scratches in high-traffic zones. |

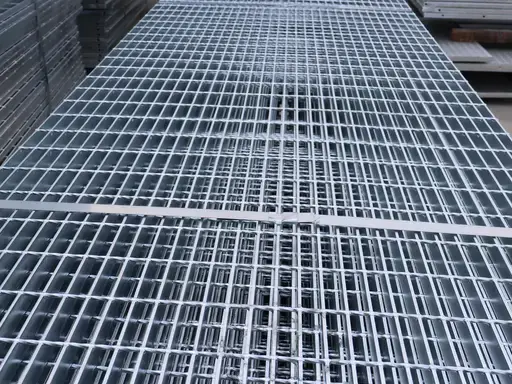

Steel remains the king of load-bearing efficiency. For long spans where you want to minimize the number of support columns, steel is often the only viable choice. Galvanized steel generally offers the lowest total cost of ownership (TCO) for non-marine environments. It resists rust for decades and handles abuse from skateboards or maintenance vehicles better than softer materials.
However, you must consider the heat. In direct summer sun, steel can become uncomfortably hot for pets or children. Aesthetically, galvanized steel develops a matte gray patina. If you require a permanent shiny finish, you must upgrade to stainless steel, though the cost is significantly higher.
FRP is the superior choice for water-adjacent projects. It is impervious to salt water and rot. For hikers and tourists, FRP offers a unique benefit: micro-deflection. The material has a slight give that reduces foot fatigue during long walks, similar to the difference between running on concrete versus a track.
The main enemy of FRP is ultraviolet light. Over a decade, intense sun can cause fiber bloom, where the resin recedes and exposes the glass fibers. Modern high-quality FRP includes integral UV inhibitors to delay this, but it is a long-term maintenance consideration.
Aluminum is best reserved for specialized applications. Its primary advantage is weight. If you are retrofitting a walkway onto an old roof or a weight-restricted historic structure, aluminum reduces the dead load significantly. In general public parks, however, its softness can be a liability. It scratches easily and can dent if heavy maintenance equipment is driven over it carelessly.
Once you select the material, you must choose how it is constructed. The manufacturing method dictates the visual lines and the texture of the walking surface.
Standard industrial grating is usually welded. This process fuses the cross bars to the bearing bars, often leaving visible weld beads or splash marks. While functional, it looks undeniably industrial. It works for a maintenance catwalk, but it often clashes with the design of a modern urban plaza.
For visible public areas, we recommend press-locked or swage-locked grating. In this process, high hydraulic pressure forces the cross bars into slots on the bearing bars. This creates a permanent mechanical lock without heat or welding. The result is a flush, clean grid pattern with crisp architectural lines. It provides the same load capacity as welded grating but with a significantly more refined finish.
Safety comes from friction, but there is such a thing as too much grip. Serrated steel is the standard for oil rigs because it bites into boot soles to prevent slipping on grease. In a public park, aggressive serrations can be a hazard. If a child falls, the sharp edges act like a cheese grater. They are also uncomfortable for dog paws.
For public spaces, consider these alternatives:
Grit/Epoxy Surfaces: Common on FRP and smooth steel. This sandpaper-like texture provides excellent traction in wet conditions without sharp metal edges.
Algorithmic/Non-Slip Patterns: Manufacturers can produce specialized button or perforated patterns. These offer moderate grip and are safer for skin contact in the event of a fall.
Compliance is not optional. Failure to adhere to accessibility standards can render a beautiful bridge unusable for a significant portion of the population and open the facility owners to legal action.
The Americans with Disabilities Act (ADA) and similar global standards set strict limits for accessible routes. The golden rule is that grating openings must not allow a sphere of ½ inch (13mm) to pass through. This specific dimension prevents the front caster wheels of wheelchairs from twisting or getting stuck in the gaps.
Implementation Tip: Always orient the elongated openings perpendicular to the dominant direction of travel. Even if the gap is technically compliant, wheels roll smoother when they cross the bars at a 90-degree angle rather than running parallel to them.
You must evaluate friction coefficients in both dry and wet scenarios. A surface that is grippy when dry might become a skating rink when wet. In freezing climates, Self-Draining designs are crucial. Solid surfaces allow puddles to freeze into black ice. Open outdoor walkway grating allows water to pass through immediately, keeping the walking surface clear and reducing slip liabilities during winter.
The edge of the grating panel is a common failure point. Banding is the process of welding a flat metal bar to the open ends of the grating panel. This is mandatory for public spaces. Without banding, the open bar ends are sharp cut hazards. Banding also provides rigidity, preventing the bars from bending under impact.
Trip hazards often arise from poor fastening. Standard clips sometimes stick up above the mesh. You should specify recessed clips or saddle clips that sit flush or below the walking surface. The goal is a seamless transition between panels.
The long-term success of a project often depends on factors that arise after the initial design is approved. Installation logistics and maintenance budgets play a huge role in the material's total value.
One of the greatest advantages of grating over concrete is its modularity. Grating arrives in panelized sections. If a tree falls and damages a section of a boardwalk, maintenance crews can unbolt and replace just that single panel. Repairing a cracked concrete span is a much more intensive, expensive engineering feat.
When installing, fastener selection is critical. You must use Stainless Steel (304 or 316 grade) clips. Using standard galvanized clips on outdoor grating often leads to premature failure. Worse, if you use carbon steel clips on aluminum grating, galvanic corrosion will occur, eating away at the structure. Stainless steel clips prevent these chemical reactions and ensure the fasteners last as long as the walkway.
Steel: Expect change. Galvanized steel starts shiny but weathers to a dull gray. This is normal. Maintenance teams should inspect for breaches in the zinc coating, which can be touched up with cold galvanizing spray.
FRP: Watch for UV damage. After 10 to 15 years, you might see fiber bloom. This is often cosmetic but can make the surface itchy to touch. A UV-resistant topcoat can be reapplied to extend its life.
Self-Cleaning: The open-grid design drastically reduces janitorial costs. Leaves, snow, and litter often fall through the mesh (if permitted by the environment below) or are easily blown off. There is no need for heavy power washing to remove pooled mud, as water drains naturally.
When pitching to stakeholders, frame the cost regarding lifecycle. Timber boardwalks have a low initial CapEx but a massive maintenance OpEx due to staining, rotting, and board replacement. Steel Grating has a moderate initial cost but is largely set-and-forget. Stainless steel has a high initial CapEx but virtually zero maintenance. For most public projects, galvanized steel or high-quality FRP offers the sweet spot of moderate cost and low long-term effort.
Selecting the right outdoor walkway grating is a decision matrix that balances three competing forces: Load, Environment, and Aesthetics. If your project demands long spans and high durability, galvanized steel is the logical winner. If you are building in a sensitive wetland or coastal area, FRP provides the necessary corrosion resistance and comfort. For high-visibility urban architectural projects, press-locked stainless steel delivers the premium finish that designers crave.
Before finalizing your specification, always check your local municipal codes regarding open area requirements. Some jurisdictions mandate specific light penetration levels to protect waterways or plant life beneath bridges. By aligning your choice with ADA standards and environmental needs, you ensure a safe, lasting, and beautiful addition to the public landscape.
Call to Action: Don't leave safety to chance. Consult with a structural engineer today to specify the correct mesh size and load capacity for ADA compliance in your specific jurisdiction.
A: Standard industrial grating is not pet-friendly; wide gaps can trap paws, and serrated edges cause injury. For parks, you must specify Close Mesh grating (openings ¼ inch or smaller) or use a grit-top surface on FRP. This prevents claws from getting stuck and provides a comfortable, non-abrasive surface for dogs to walk on.
A: Standard galvanized steel will eventually corrode in saltwater environments. For marine applications (piers, coastal bridges), you should choose Stainless Steel (Grade 316) or Fiberglass Reinforced Plastic (FRP). These materials resist the corrosive effects of salt spray and humidity far better than galvanized carbon steel.
A: Yes, steel grating can retain significant heat in direct sunlight, which may be uncomfortable for bare feet or pets. FRP (fiberglass) has much lower thermal conductivity and stays cooler to the touch than steel. If heat is a major concern in your region, FRP or light-colored coated aluminum are better options.
A: Both are mechanical locking methods that avoid welding. Press-locked involves forcing cross bars into slots under high pressure. Swage-locked involves deforming the cross bars to lock them into the bearing bars. Swage-locking generally offers slightly higher lateral stiffness, but both provide the clean, flush architectural look preferred for public spaces.
A: Many environmental agencies require boardwalks over wetlands or water to have a minimum open area (often 60%+) to allow sunlight to reach aquatic plants below. Using transparent grating instead of solid concrete can be the deciding factor in getting your environmental permit approved, as it minimizes the ecological shadow of the structure.
