Designing industrial infrastructure requires a delicate balancing act between immediate budget constraints, strict safety compliance, and long-term structural integrity. For Project Managers and Structural Engineers, the choice of flooring material for catwalks, platforms, and mezzanines often dictates the future maintenance burden of the facility. While painted carbon steel might appeal to procurement teams due to its lower initial sticker price, it frequently traps facility managers in an endless, costly loop of rust removal and repainting. Similarly, fiberglass reinforced plastic (FRP) offers chemical resistance but often fails to provide the high-load rigidity required for dynamic industrial environments.

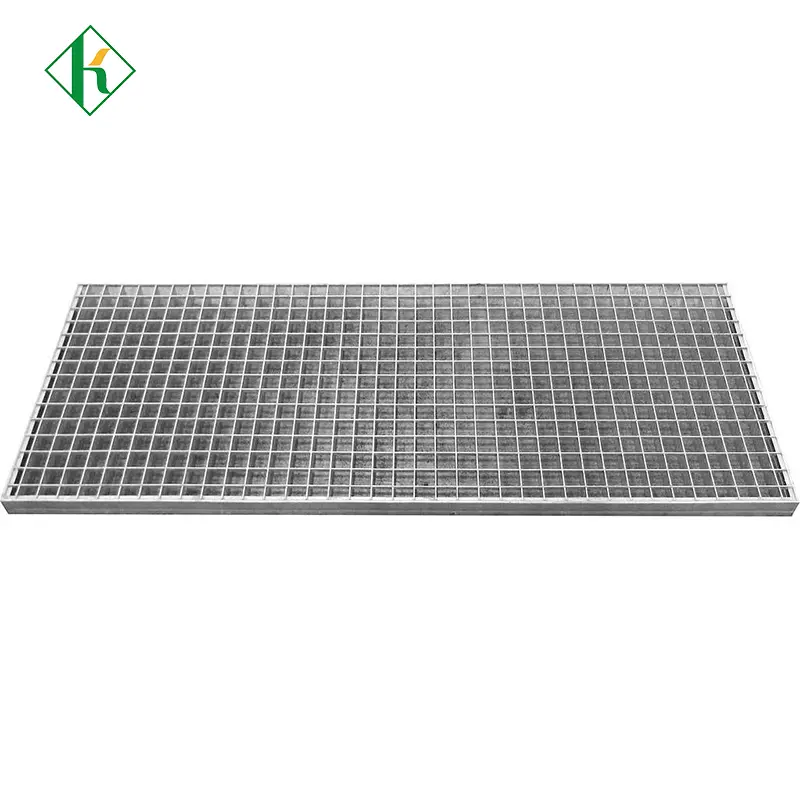

The solution for most heavy-duty applications lies in utilizing galvanized steel walkway grating. Beyond being a simple material specification, this option serves as a strategic asset that minimizes operational downtime and maximizes lifecycle Return on Investment (ROI). By combining the superior strength of steel with the metallurgical protection of zinc, this material choice addresses the corrosion versus cost dilemma that plagues many industrial designs. In this guide, we will move beyond general awareness to technical validation, proving why galvanized steel remains the superior choice for durable walkways.
TCO Superiority: While initial CAPEX may be higher than painted options, the 50+ year maintenance-free lifespan drives TCO down significantly.
Structural Versatility: Offers the highest strength-to-weight ratio for heavy-duty load scenarios compared to aluminum or FRP.
Compliance Ready: Configurations available to meet OSHA, ADA, and local building codes regarding drainage, slip resistance, and fall protection.
Installation Efficiency: Modular bolt-down capabilities reduce on-site hot work and installation hours.
When evaluating infrastructure materials, savvy procurement officers look past the initial purchase price to the Total Cost of Ownership (TCO). This metric accounts for the asset's entire lifespan, including installation, maintenance, downtime, and eventual replacement.
The sticker price of untreated or painted black steel is almost always lower than hot-dip galvanized (HDG) steel. However, this initial saving is often an illusion. Painted steel relies on a surface bond that is easily scratched during transport or installation, creating immediate entry points for oxidation. Once rust begins, the maintenance costs escalate rapidly.
Facility managers must budget for sandblasting, primer re-application, and top-coating every few years. In active industrial plants, these maintenance cycles often require partial shutdowns or complex containment measures to prevent paint chips from contaminating production lines. In contrast, Steel Grating that has been hot-dip galvanized eliminates these hidden costs. The initial investment pays for decades of passive protection, requiring zero touch-ups in standard atmospheric conditions.
To understand where galvanized steel fits in the market, we must compare it directly against its primary competitors: Fiberglass Reinforced Plastic (FRP) and Aluminum.
| Feature | Galvanized Steel | FRP (Fiberglass) | Aluminum |
|---|---|---|---|
| Load Capacity | High (Best for vehicle/heavy equipment) | Low/Medium (Brittle under impact) | Medium (High strength-to-weight) |
| Fire Resistance | Non-Combustible (Does not melt) | Combustible (Can emit toxic fumes) | Melts (at approx. 1,220°F) |
| Impact Resistance | Deforms but holds | Cracks or shatters | Deforms easily |
| Initial Cost | Moderate | High | High |
| Maintenance | None (Self-healing zinc) | Low (UV degradation risk) | Low (Oxidation layer) |
While FRP is excellent for electrically conductive or highly acidic environments, it lacks the tensile strength of steel. If a heavy tool is dropped on FRP, it may crack; steel will merely dent but retain structural integrity. Aluminum serves well in weight-sensitive areas like rooftops, but for high-traffic walkways, the cost premium of aluminum rarely justifies the weight savings compared to the durability of galvanized steel.
The longevity of galvanized steel is not a marketing claim; it is a chemical certainty defined by industry standards such as ASTM A123. During the galvanization process, the steel is submerged in molten zinc at roughly 840°F (449°C). This creates a metallurgical bond—an alloy layer where zinc and iron interlock. This is fundamentally different from paint, which merely sits on top of the surface.
For standard heavy-duty grating, the zinc coating thickness is typically ≥60 µm (microns), though this varies with steel thickness. This coating provides both barrier protection and cathodic protection. If the coating is scratched, the surrounding zinc sacrifices itself to protect the exposed steel, preventing the spread of rust (undercutting) that destroys painted finishes.
Not all grating is created equal. Engineers must specify the correct manufacturing method and load rating to ensure the walkway meets the specific demands of the environment.
Welded bar grating is the workhorse of the industrial world. It is manufactured by fusing bearing bars and cross rods together at high heat and pressure.
Best for: Oil & gas platforms, wastewater treatment plants, industrial mezzanines, and power generation facilities.
Pros: This configuration offers maximum rigidity and strength. It is essentially a single-piece construction that can withstand heavy vibration and rolling loads without loosening. It is also the most cost-effective manufacturing method for standard industrial applications.
For projects where aesthetics matter as much as strength, press-locked or swage-locked grating is preferred. In these processes, cross bars are hydraulically forced into pre-punched slots in the bearing bars (press-locked) or permanently deformed to lock them in place (swage-locked).
Best for: Commercial facades, architectural walkways, public transit stations, and sunshades.
Pros: These methods produce cleaner lines and a smoother finish compared to welded joints. They also allow for a wider variety of bar spacings, enabling architects to create specific visual effects or meet strict spacing requirements for public safety.
Expanded metal is created by slitting and stretching a single sheet of steel.
Best for: Light-duty catwalks, billboards, and security fencing.
Economic Note: Because the process stretches the metal rather than punching holes out of it, there is virtually no material waste. This makes expanded metal a highly economical choice for walkways that do not require high load-bearing capacities.
A critical error in specification is failing to distinguish between static loads (equipment placement) and dynamic loads (forklifts or crowds).
Light-Duty: Suitable for pedestrian traffic. Typically utilizes bearing bars ranging from 3/4 to 2-1/2 in depth.
Heavy-Duty: Required for areas subject to rolling loads from forklifts, trucks, or heavy carts. These gratings feature thicker bearing bars (often 1/4, 5/16, or 3/8 thick) and are welded to withstand the lateral forces exerted by turning wheels.
Beyond structural support, walkways function as safety systems. Galvanized steel walkway grating plays a pivotal role in maintaining compliance with safety regulations like OSHA and ADA.
In environments prone to oil spills, water, or grease, a standard smooth surface can become a liability.
Serrated Surface: The top edges of the bearing bars are notched. This provides enhanced grip for footwear in wet or oily conditions, significantly reducing slip-and-fall incidents.
Grip Strut/Diamond Safety: For extreme traction needs (e.g., icy outdoor stairs or mud-prone areas), grating with serrated diamond patterns offers 360-degree slip resistance.
Standard industrial grating typically has a mesh opening (e.g., 1-3/16) that can trap high heels, wheelchair casters, or walking canes. To meet Americans with Disabilities Act (ADA) guidelines, engineers should specify Close-Meshed Grating. These configurations feature narrow bearing bar spacing (often 1/2 or 7/16) that prevents entrapment while still allowing drainage and light filtration. This is crucial for public infrastructure like city bridges or subway ventilation grates.
The open grid design of steel grating is a functional necessity for outdoor and complex indoor environments.
Drainage: Unlike solid plate flooring, grating prevents the pooling of water, oil, and the formation of ice. This self-draining capability is a primary safety feature for outdoor gantries.
Light & Air: The open area allows natural light to penetrate to lower levels, reducing the need for auxiliary lighting. It also permits free airflow, which is critical for dissipating heat in manufacturing plants or fumes in chemical facilities.
Ecosystem Impact: In park and nature trail applications, the light permeability allows vegetation to continue growing beneath the walkway, minimizing the ecological footprint of the structure.
According to OSHA standards, elevated walkways must prevent objects from falling onto people or machinery below. This necessitates the use of Integrated Toe Boards (Kick Plates). These are vertical metal plates (usually 4 inches high) welded to the edge of the grating panels. Specifying grating with pre-welded toe boards simplifies installation and ensures immediate compliance.
The method of attaching grating to the structural steel support is as important as the grating itself. The choice between mechanical fastening and welding affects future maintenance flexibility.
Using saddle clips or G-clips is the preferred method for most galvanized grating installations.
Advantage: Drilling holes or using friction clamps does not damage the zinc coating. Welding, by contrast, burns the zinc off, requiring repairs.
Flexibility: Clips allow the grating to be easily removed. If equipment beneath the walkway needs service, or if a section of grating is damaged, maintenance crews can simply unbolt the panel without cutting tools.
Field welding anchors the grating permanently to the support steel.
Application: This is often necessary in high-security areas or environments with extreme vibration where bolts might loosen over time.
Risk & Mitigation: Welding destroys the galvanized coating at the weld point. Installers must treat these areas immediately with cold galvanizing spray (a zinc-rich paint) to prevent rust bleeding. Failure to do so creates a corrosion hotspot that can compromise the panel.
A common installation error is incorrect orientation. Bearing bars must run perpendicular to the support structure. The cross rods hold the bars together but provide no structural support. If grating is installed with the bearing bars running parallel to the support beams, the panel will fail, leading to catastrophic collapse. Always check the span direction on the drawings before laying panels.
While galvanized steel is robust, it is not invincible. Understanding its limitations ensures it is applied in the right environments.
Freshly galvanized steel is susceptible to wet storage stain or white rust—a powdery white deposit that forms when zinc is exposed to moisture without airflow. This often happens when grating panels are stacked tightly outdoors before installation.
Mitigation: Store panels indoors if possible. If stored outdoors, use spacers between panels to allow airflow and tilt the stack to promote water runoff. Light white rust is cosmetic, but heavy deposits can reduce coating life.
Zinc is amphoteric, meaning it reacts with both strong acids and strong alkalis.
Avoid: Environments with a pH below 4 or above 12. For highly acidic chemical plants or caustic soda processing areas, Stainless Steel or Vinyl Ester FRP are better choices.
Use: Standard industrial atmospheres, freshwater exposure, and mild chemical environments (pH 6–12).
Galvanized steel performs exceptionally well in marine and salt-air environments. The chlorides in sea salt can accelerate corrosion in painted steel, but zinc provides sacrificial protection. Even if the salt air penetrates the surface, the zinc layer corrodes preferentially to the steel, extending the structural life of piers, docks, and coastal walkways by decades.
Choosing the right walkway material is a decision that impacts the safety of personnel and the financial health of a facility for decades. Galvanized steel walkway grating represents the optimal intersection of high structural performance, regulatory compliance, and low maintenance liability. While alternatives like FRP or painted steel have their niches, they rarely match the comprehensive Total Cost of Ownership benefits provided by hot-dip galvanized steel in heavy-duty applications.
To ensure project success, decision-makers should follow a simple framework: define the Load Requirement first (static vs. dynamic), evaluate the Environment (corrosivity and pH), and finally ensure Compliance (ADA/OSHA). Before finalizing your Bill of Materials, we strongly encourage consulting with a reputable supplier to calculate exact load tables and span requirements. This technical validation step ensures that your infrastructure is safe, compliant, and built to last.
A: In rural or standard industrial environments, hot-dip galvanized grating can last over 50 years without maintenance. In more aggressive coastal or heavy industrial settings, the lifespan is typically 20 to 30 years before first maintenance is required. The longevity depends directly on the thickness of the zinc coating and the local corrosion rate.
A: Yes, grating can be cut to fit on-site. However, cutting exposes the raw steel core. You must immediately seal all cut edges and drill holes with a high-quality zinc-rich paint (cold galvanizing spray) to maintain corrosion resistance. Leaving cut edges exposed will lead to rapid rusting.
A: Smooth grating has a flat surface and is easier to clean, making it suitable for general pedestrian traffic. Serrated grating has notches cut into the top of the bearing bars, providing aggressive slip resistance. Serrated is the standard choice for areas prone to water, oil, grease, or ice accumulation.
A: Yes, but you must specify Heavy Duty grating. Standard pedestrian grating cannot support the concentrated dynamic loads of a forklift. Heavy-duty options feature thicker and deeper bearing bars specifically designed to handle rolling wheel loads without buckling.
A: Galvanized steel is non-combustible and will not melt until temperatures exceed 2,500°F, maintaining structural integrity during most fires. FRP is plastic-based; while some formulations are fire-retardant, they can eventually melt, lose structural strength, or emit toxic fumes when exposed to high heat.
