Selecting the right outdoor walkway grating is a critical balance between structural load requirements, environmental exposure, and strict budget constraints. For facility managers and structural engineers, the stakes are high; a wrong choice can lead to significant safety liabilities, rapid corrosion, and premature replacement costs that far exceed the initial savings. It is not merely a question of price per square foot but of understanding how different metals react to atmospheric stressors and traffic patterns over decades.
This guide moves beyond simple price tags to evaluate the structural integrity, maintenance cycles, and installation realities of the market’s primary options. We will provide a technical comparison of carbon steel, galvanized steel, aluminum, stainless steel, and fiberglass alternatives. By analyzing these materials against engineering standards and total cost of ownership models, we aim to support smarter procurement and engineering decisions for your next project.
Load Dominance: Steel grating remains the standard for heavy industrial loads (H-20) and high-impact zones, though weight increases installation costs.
Corrosion Strategy: Galvanized steel offers a cost-effective sacrificial barrier, while aluminum and stainless steel rely on passive oxide layers for self-healing longevity.
Foundation Impact: Aluminum is ~1/3 the weight of steel, significantly reducing dead load on support structures and simplifying field handling.
TCO Reality: While carbon steel has the lowest upfront cost, maintenance (repainting) often makes galvanized or aluminum options cheaper over a 10-year horizon.
When specifying grating, you are essentially selecting a physical property profile that must align with your site’s specific conditions. Below, we break down the core material options based on their physical limitations, advantages, and best fit applications.
Carbon steel serves as the baseline for industrial flooring. It is the raw material before any advanced protective coatings are applied, often supplied with a simple mill finish or a coat of black paint.
Pros: This material offers the highest strength-to-cost ratio in the market. It boasts superior impact resistance, making it unlikely to deform under sudden heavy drops. It is also widely available and easy to weld in the field.
Cons: The primary weakness is rapid oxidation. When exposed to outdoor moisture, unprotected carbon steel begins to rust almost immediately. It requires a rigorous schedule of scraping and repainting to maintain integrity. Furthermore, it is heavy, often requiring machinery to maneuver during installation.
Best For: Dry industrial interiors, temporary outdoor applications where aesthetics do not matter, or projects where the upfront budget is the primary and only constraint.

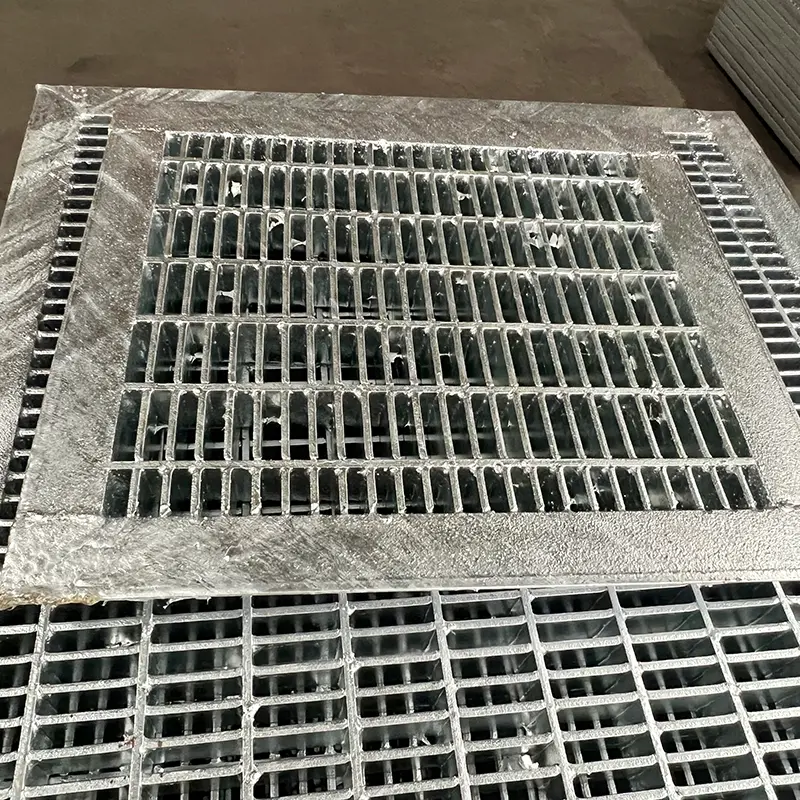

Hot-dip galvanization transforms standard carbon steel into a durable outdoor solution. This process involves dipping the fabricated Steel Grating into a bath of molten zinc, creating a metallurgical bond.
Mechanism: The zinc coating provides Triple Protection. First, it acts as a physical barrier sealing the steel from water and air. Second, it offers cathodic protection; if the coating is scratched, the surrounding zinc sacrifices itself to protect the steel underneath. Third, as the zinc weathers, it develops a zinc patina that further slows corrosion.
Trade-off: This process significantly extends the lifespan compared to plain steel, often by decades. However, it typically adds 10-15% to the raw material cost. In extremely high-abrasion areas, constant friction can eventually wear through the zinc layer.
Best For: The vast majority of industrial outdoor walkway grating scenarios, including highway bridges, refinery catwalks, and power plant platforms.
Aluminum offers a distinct alternative philosophy: reducing the load rather than fighting it. Most architectural and industrial aluminum gratings utilize the 6000 series alloys (like 6061 or 6063) for a balance of strength and workability.
Key Stat: The density of aluminum is approximately 2.7 g/cm³, compared to steel’s ~7.8 g/cm³. This makes it roughly one-third the weight of steel for the same volume.
Benefit: It possesses a high strength-to-weight ratio. Upon exposure to oxygen, aluminum naturally forms a thin, hard oxide layer that prevents further corrosion without the need for painting. Additionally, it is non-sparking, making it safer for volatile environments containing explosive gases.
Best For: Wastewater treatment plants, architectural facades, roof walkways, and offshore platforms where minimizing the dead structural load on the foundation is critical.
Stainless steel is the premium option, alloyed with chromium and nickel to provide resistance against aggressive chemical attack.
Differentiation: Grade 304 is the standard for general outdoor use and resists ordinary oxidation well. Grade 316 includes molybdenum, which specifically increases resistance to chloride corrosion found in saltwater and de-icing salts.
Reality Check: It offers the highest durability and hygiene capabilities. However, it comes with the highest raw material cost and is difficult to cut or modify in the field without specialized tools.
Best For: Food processing facilities (where sanitation is law), chemical plants handling caustics, and severe marine exposure zones.
| Material | Relative Cost | Corrosion Resistance | Weight Profile | Primary Use Case |
|---|---|---|---|---|
| Carbon Steel | Low | Poor (unless painted) | Heavy | Dry Interiors / Temporary |
| Galvanized Steel | Medium | Excellent (Zinc Barrier) | Heavy | Industrial Walkways |
| Aluminum | High | High (Natural Oxide) | Light (1/3 of Steel) | Wastewater / Roofing |
| Stainless Steel | Very High | Superior (Chemical) | Heavy | Food / Marine / Chemical |
Simply asking for strong grating is insufficient for procurement. Engineering specifications must align with specific load criteria to ensure safety and code compliance. We must move beyond general terms and look at the physics of the application.
Two distinct types of pressure affect how a walkway performs. The first is Concentrated Load. This refers to point pressure applied to a small area, such as the wheel of a forklift, a pallet jack, or the leg of heavy stationary equipment. If the grating is not specified for this, bars can bend or buckle permanently under the localized stress.
The second is Uniform Distributed Load. This accounts for general foot traffic, crowded gatherings, or environmental factors like heavy snow accumulation spread across the entire surface area. While less intense at a single point, this load tests the overall deflection limits of the span.
In the United States, the National Association of Architectural Metal Manufacturers (NAAMM) and ANSI set the benchmarks used by engineers.
Light Duty: This generally covers pedestrian traffic, defined as supporting less than 2,000 lbs. Aluminum grating or light-gauge steel is typically suitable here, provided the span is supported correctly.
Heavy Duty (H-20): This standard specifies that the flooring must be capable of supporting a 10,000 lb wheel load (half of a 20-ton axle). This level of durability is almost exclusively the domain of heavy-duty welded Steel Grating. Attempting to use standard aluminum in H-20 zones without massive reinforcement is a safety violation.
The strength of a walkway is dictated by the relationship between the bearing bar depth and the allowable span (the distance between supports). There is a clear decision rule: deeper bars increase load capacity significantly.
However, deeper bars also raise the floor height and the total weight of the panel. Before specifying deep sections to achieve a long span, you must verify the limitations of your support structure. A 4-inch deep steel grating panel is incredibly strong but may be too heavy for a lightweight roof truss to hold.
An outdoor walkway grating system faces a barrage of stressors that indoor flooring never sees. Assessing how materials survive these specific conditions is key to predicting longevity.
Geography impacts material choice more than many realize. In rural environments, galvanized steel may last 50 years. In coastal zones, that same zinc coating fights a constant battle against chloride salts.
Galvanized steel has limitations. In highly acidic environments (like near chemical exhaust vents) or heavy salt spray zones, zinc layers deplete faster than expected. In these cases, upgrading to Stainless Steel or switching to FRP (Fiberglass Reinforced Plastic) may be required to prevent structural failure. Furthermore, one must consider the Galvanic Series; connecting aluminum grating directly to carbon steel supports in a wet environment will cause the aluminum to corrode rapidly due to electrolysis.
Temperature fluctuations cause materials to grow and shrink, a phenomenon that can warp walkways if ignored.
Aluminum: It has high thermal conductivity, meaning it heats up and cools down fast. More importantly, it has a higher thermal expansion coefficient than steel. In long walkway runs, engineers must install expansion joints to allow the metal to move without buckling the fasteners.
Steel: It is more thermally stable. It expands less and retains structural rigidity better in high-heat environments, making it the superior choice for fire escape routes or areas near heat-generating machinery.
How the walkway looks after five years affects the perception of facility maintenance.
Steel: Galvanized steel transitions from shiny silver to a matte gray. If the coating is scratched deep enough to reach the base metal, rust bleed can occur, staining the surrounding area brown.
Aluminum: It generally retains a silver appearance. Over time it dulls but does not rust. For architectural integration, aluminum can be anodized in various colors, maintaining a pristine look that steel cannot match without constant repainting.
Smart procurement shifts the conversation from Price per Square Foot to Installed Cost per Year. A cheap product that requires replacement in five years is expensive.
In terms of raw material cost, the hierarchy is usually: Carbon Steel (Lowest) < Galvanized < Aluminum < Stainless (Highest). However, the installed cost tells a different story.
Aluminum offers significant installation savings. Because it is lightweight, panels can often be lifted and positioned by one or two workers manually. This eliminates the need for expensive crane rentals and reduces the labor hours required compared to maneuvering heavy Steel Grating. For hard-to-reach rooftop installations, these labor savings can offset the higher material price of aluminum.
The Cost of Rust is a major TCO factor. Plain carbon steel requires sandblasting and repainting every 3 to 5 years in outdoor settings. This involves not just the cost of paint and labor, but the operational downtime of closing the walkway.
Galvanized and aluminum options offer a better ROI. While their initial CapEx is higher, this cost is usually recovered within five years due to near-zero maintenance requirements. You install them and largely forget them until the next major facility audit.
At the end of the product's life, the material still holds value. Both aluminum and steel are 100% recyclable. However, aluminum scraps often yield a significantly higher return per pound than steel. This scrap value acts as a small rebate at the end of the lifecycle, slightly offsetting the replacement costs for the next generation of flooring.
Even the best material will fail if the implementation details are ignored. Proper specification prevents inspection failures and workplace accidents.
In outdoor environments, moisture is a guarantee. Plain, smooth bearing bars become skating rinks when wet or oily. Therefore, serrated bearing bars are mandatory for most outdoor walkways exposed to rain, oil, or ice. The serrations bite into shoe soles to provide traction. For extreme environments, such as offshore rigs, specialized Algrip or grit-infused epoxy coatings provide maximum friction.
If the walkway is accessible to the public or employees with disabilities, ADA guidelines apply. The mesh or opening size is critical. The grating must allow water to drain while preventing walking aids, like canes, or narrow shoe heels from getting stuck. Typically, this requires openings smaller than 0.5 inches in the dominant direction of travel.
Close-mesh grating is the solution here. Both aluminum and steel are available in close-mesh designs specifically manufactured to meet these accessibility standards without sacrificing airflow or drainage.
How you attach the grating to the support beam matters for long-term durability. Welding is a permanent and strong method, but it damages galvanized coatings, burning the zinc away at the weld point. This requires manual touch-ups with cold-galvanizing paint, which is never as durable as the hot-dip layer.
Alternatively, Saddle clips or G-clips utilize friction and mechanical locking. They preserve the coating integrity and allow for non-destructive removal. If maintenance teams need to access pipes or cables running beneath the walkway, clips allow them to lift the grate and replace it easily.
There is no single best grating that dominates every category. Steel grating wins decisively on pure load capacity and budget for industrial heavy-duty applications. Aluminum wins on weight reduction, ease of installation, and corrosion resistance in moderate environments. Stainless steel remains the premium, non-negotiable choice for chemical harshness and hygiene.
To make the right decision, buyers must define the Critical Constraint first. Is the limitation the Load? Pick Steel. Is it the Foundation Weight or Corrosion? Pick Aluminum. Is it Hygiene? Pick Stainless. Once this framework is set, we recommend consulting with a structural engineer to calculate exact span loads before finalizing the material order. This ensures safety margins are met without over-engineering the costs.
A: Generally, standard aluminum grating is designed for pedestrian loads. While it has a high strength-to-weight ratio, it is softer than steel and prone to fatigue under heavy vehicular rolling loads. To support a forklift, you would need to specify a heavy-duty aluminum alloy with very thick bearing bars and closer spacing, or switch to heavy-duty carbon steel, which is the standard for vehicular traffic.
A: The lifespan depends heavily on the environment. In rural or mild urban settings, hot-dip galvanized grating can last 40 to 50 years without maintenance. In moderate industrial environments, expect 20 to 30 years. In severe coastal or highly acidic heavy industrial zones, the zinc coating may deplete in 10 to 15 years.
A: The difference lies in manufacturing. Welded grating joins the bearing bars and cross rods using intense heat and pressure, creating a rugged, fused joint ideal for industrial use. Press-locked grating uses high hydraulic pressure to force cross bars into slots on the bearing bars. Press-locked offers a cleaner, smoother look often preferred for architectural applications, while welded is more cost-effective for rugged use.
A: FRP is the best alternative when metals are non-viable due to electrical or magnetic concerns. Because fiberglass is non-conductive and non-magnetic, it is safer around high-voltage equipment or sensitive electronics. It is also chemically inert, making it superior to steel in environments with extreme acid or bleach exposure.
